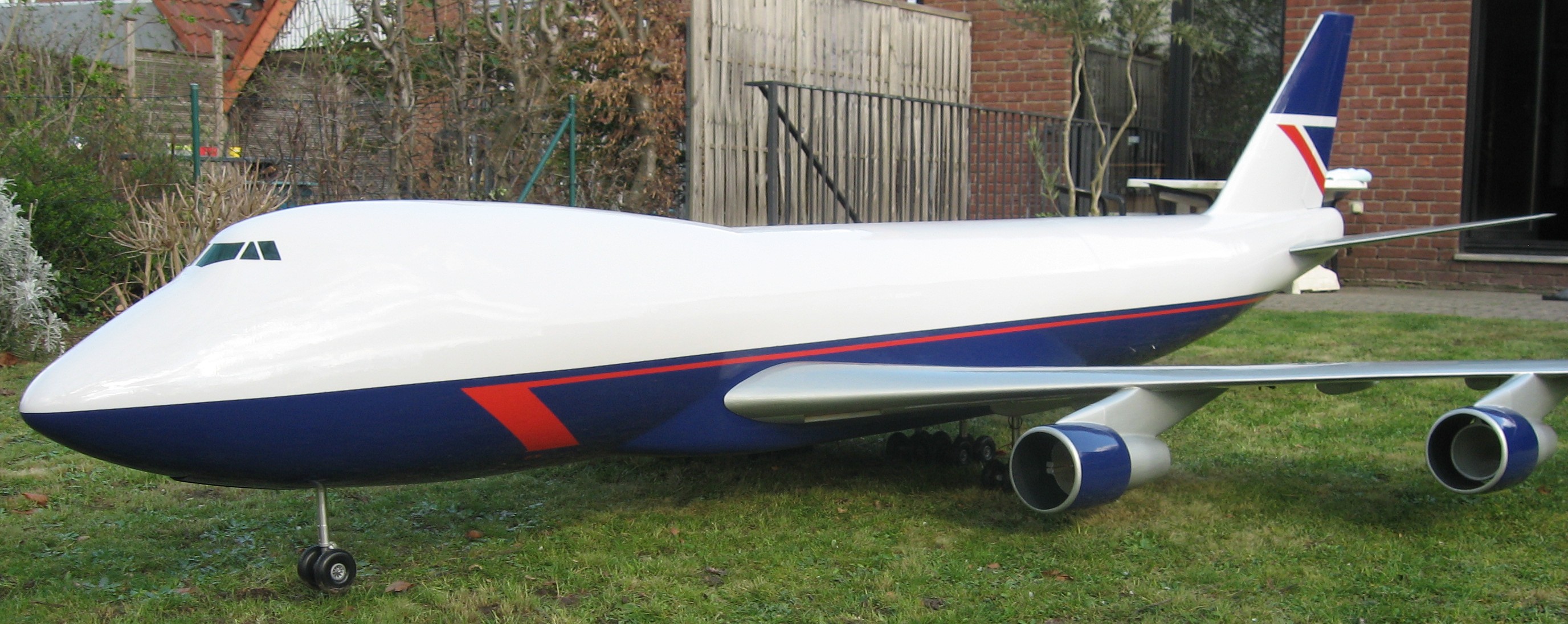

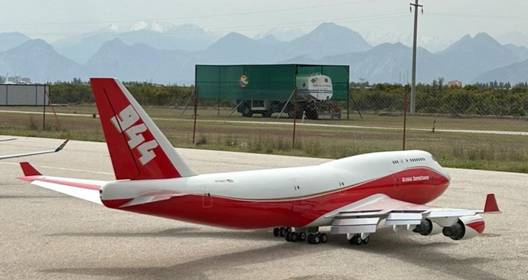

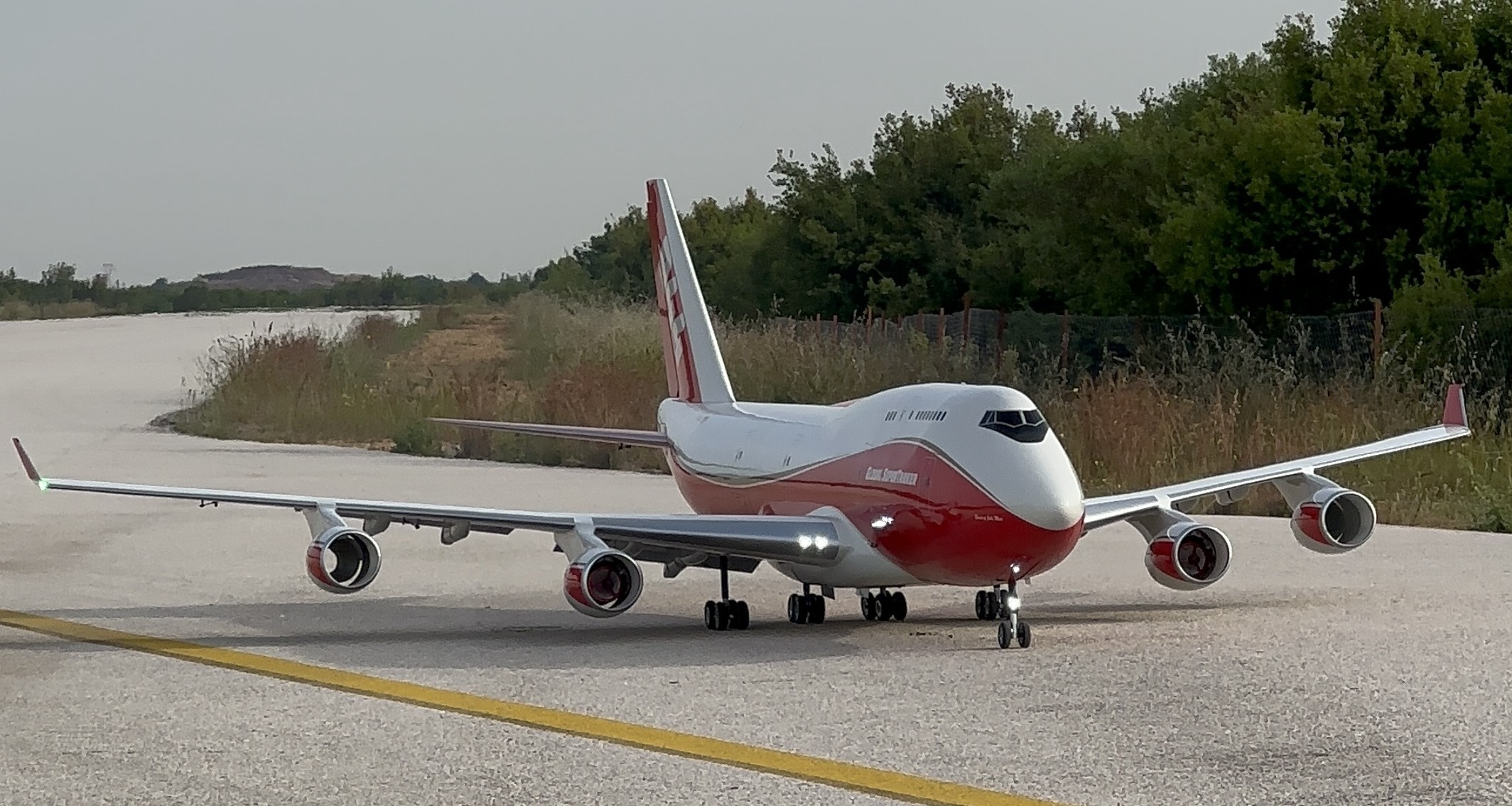

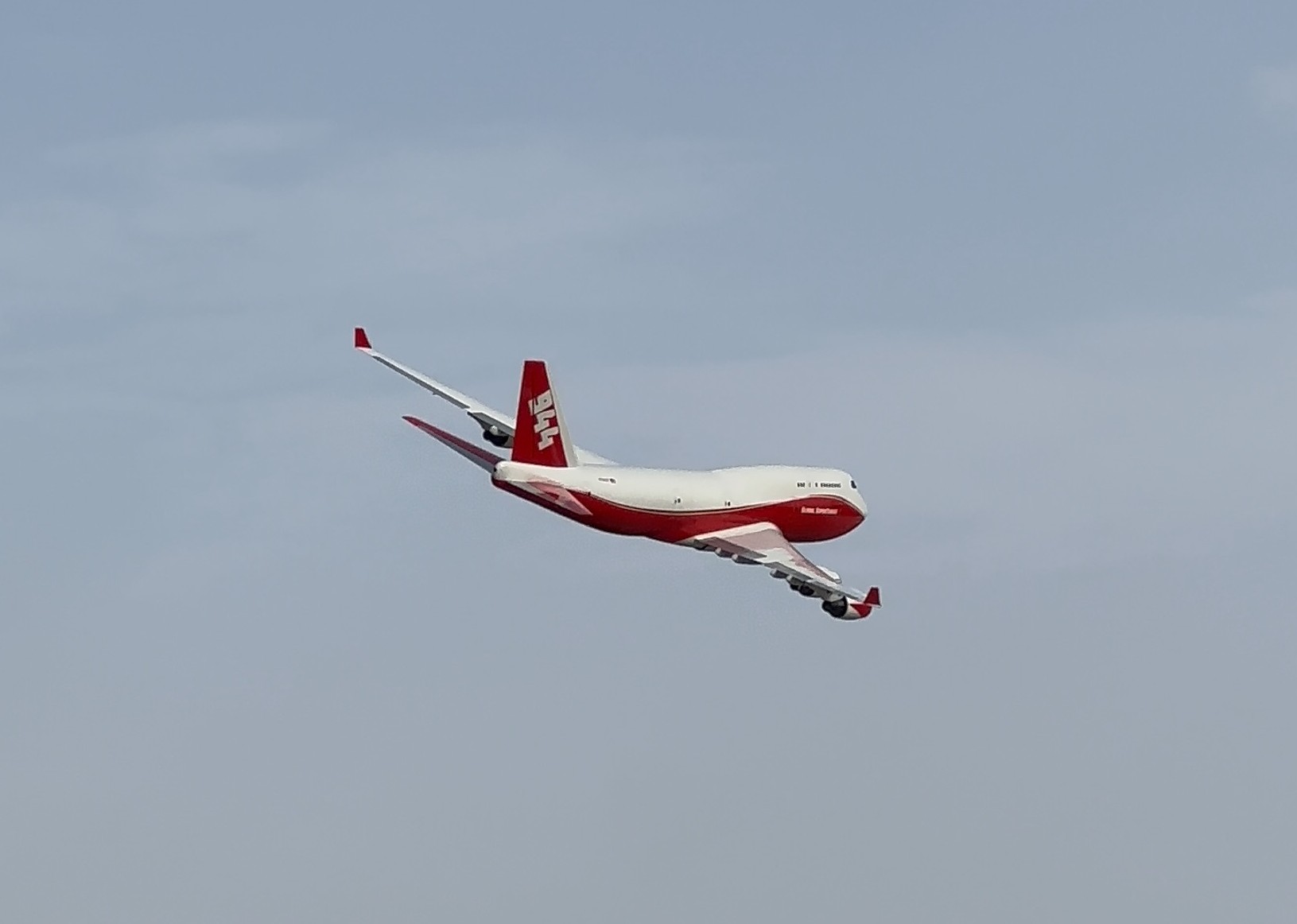

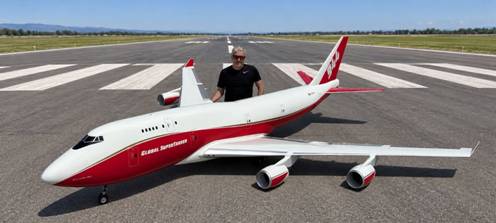

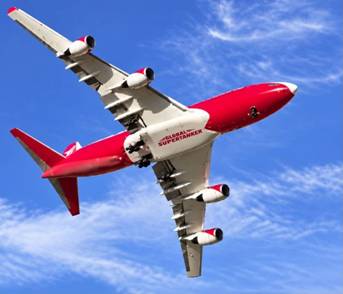

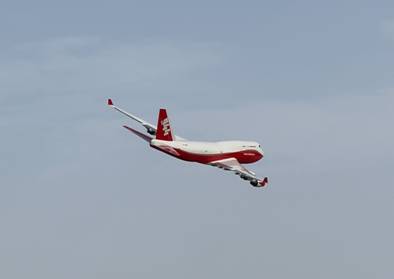

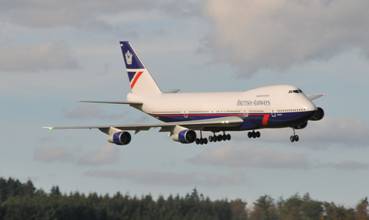

Boeing 747



Molds have been created for a future Boeing 747 project. But in this case the vertical stabilizer is not included to the set of fibreglass parts.





Powerplant:



           Turbine:   2 or 4 turbines, total thrust 240 - 280 N

            EDF:        Fan diameter up to 135 mm  (5.3’’)





 Specifications:                                                                                                                                                          Fiberglass parts: Norbert Rauch



                                                               Span               Length               Wing Area             Weight  (est.)                                   Foam cores:     ---

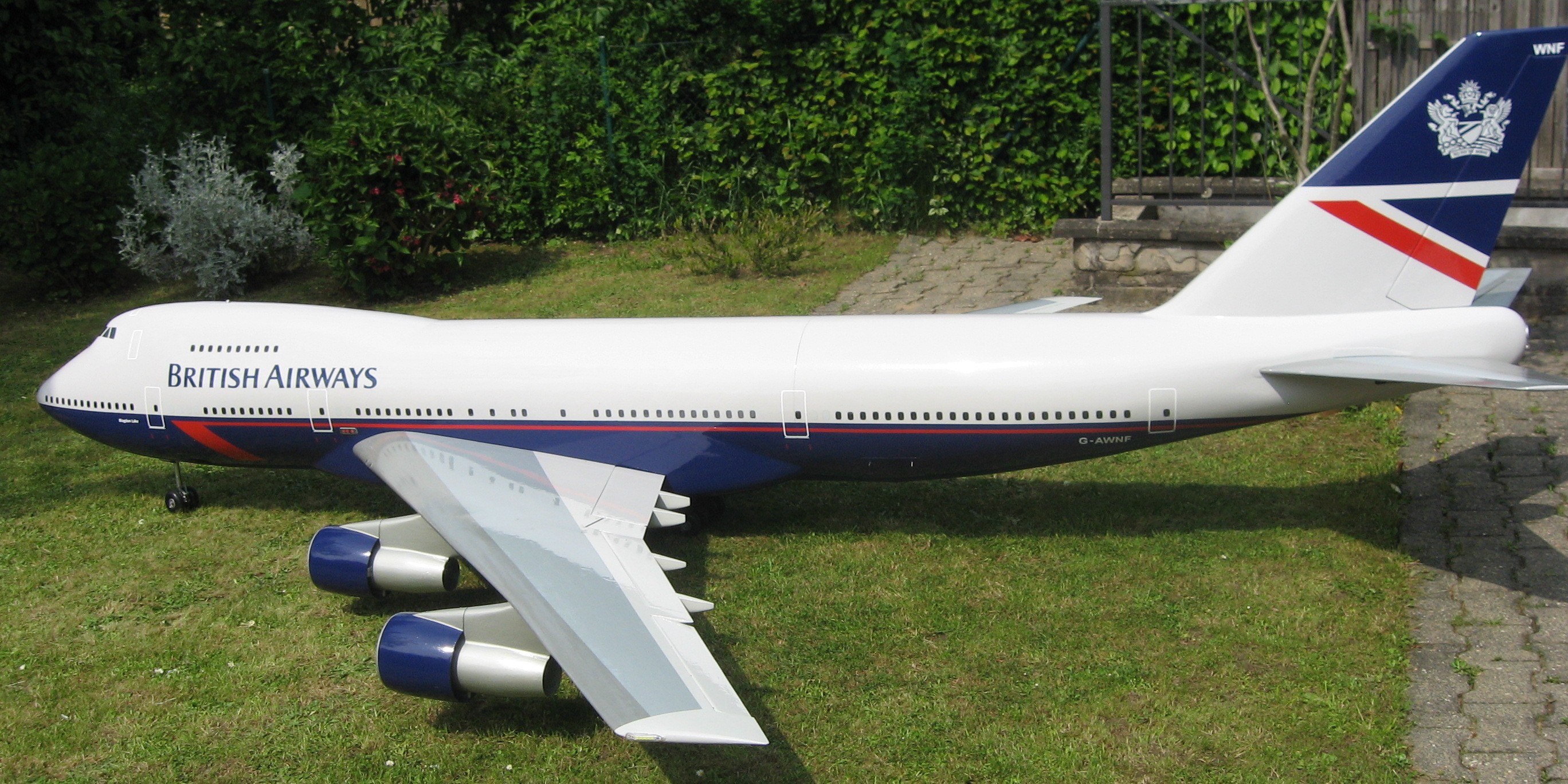

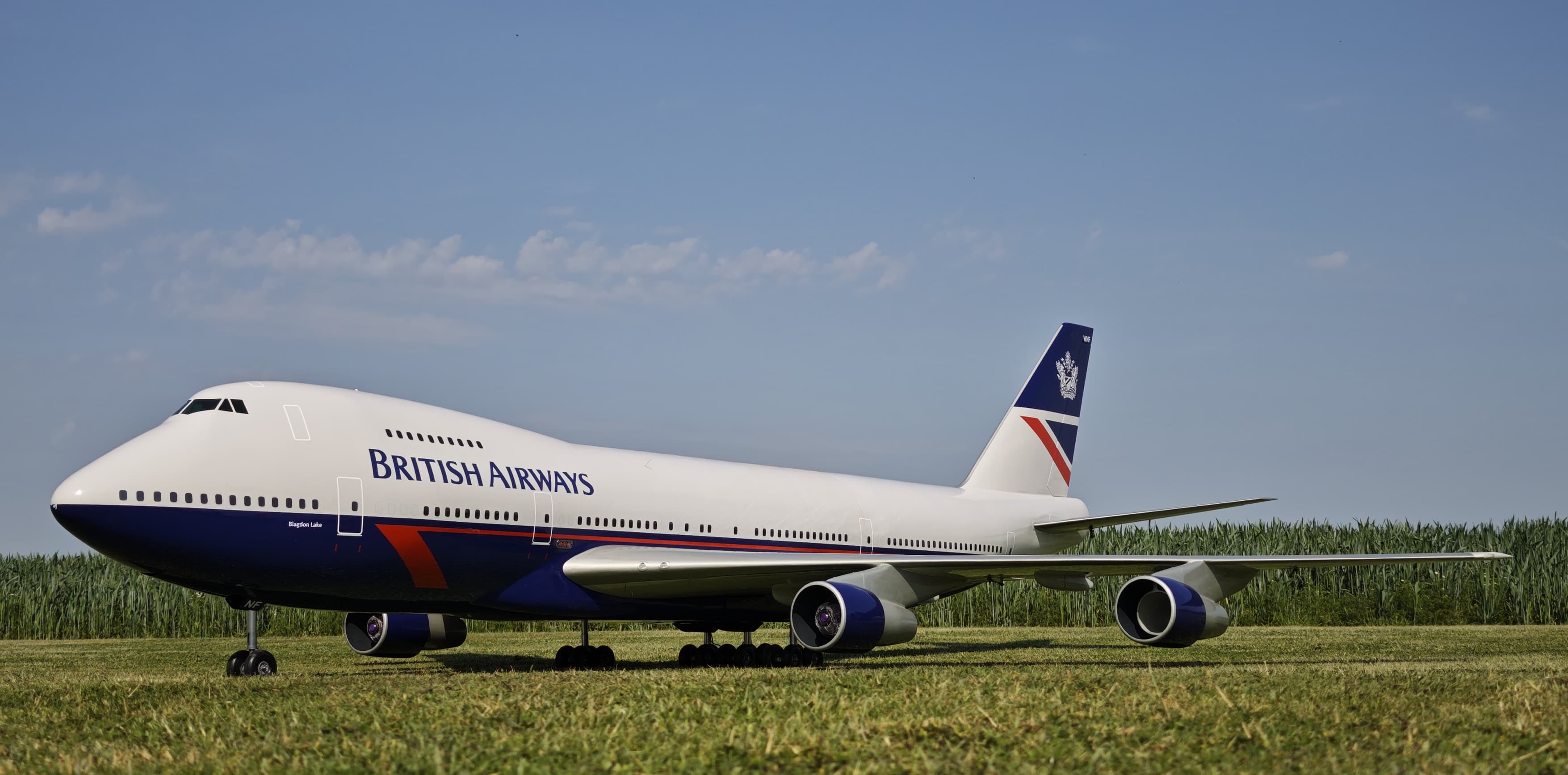

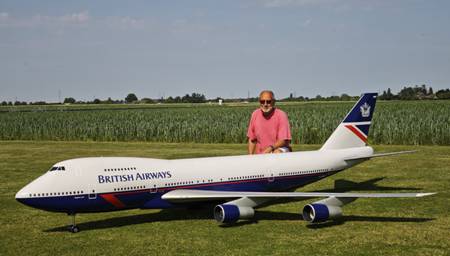

 B747-100/-200/-300       3.73 m  (147’’)     4.41 m  (174’’)     199.6 dm²  (3094 sq.in.)     32 kg  (71 lbs.)                                        Retracts:         ---

 B747SP                          3.73 m  (147’’)     3.52 m  (139’’)     199.6 dm²  (3094 sq.in.)     29 kg  (64 lbs.)

 B747-400                        4.03 m  (159’’)     4.41 m  (174’’)     211.4 dm²  (3277 sq.in.)     33 kg  (73 lbs.)

 B747-8/-8i                       4.28 m  (169’’)     4.77 m  (188’’)     216.4 dm²  (3354 sq.in.)     35 kg  (77 lbs.)

                                                                                                                                              Basic Instructions:

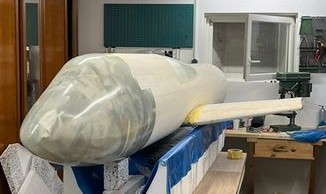

 Available fiberglass parts:

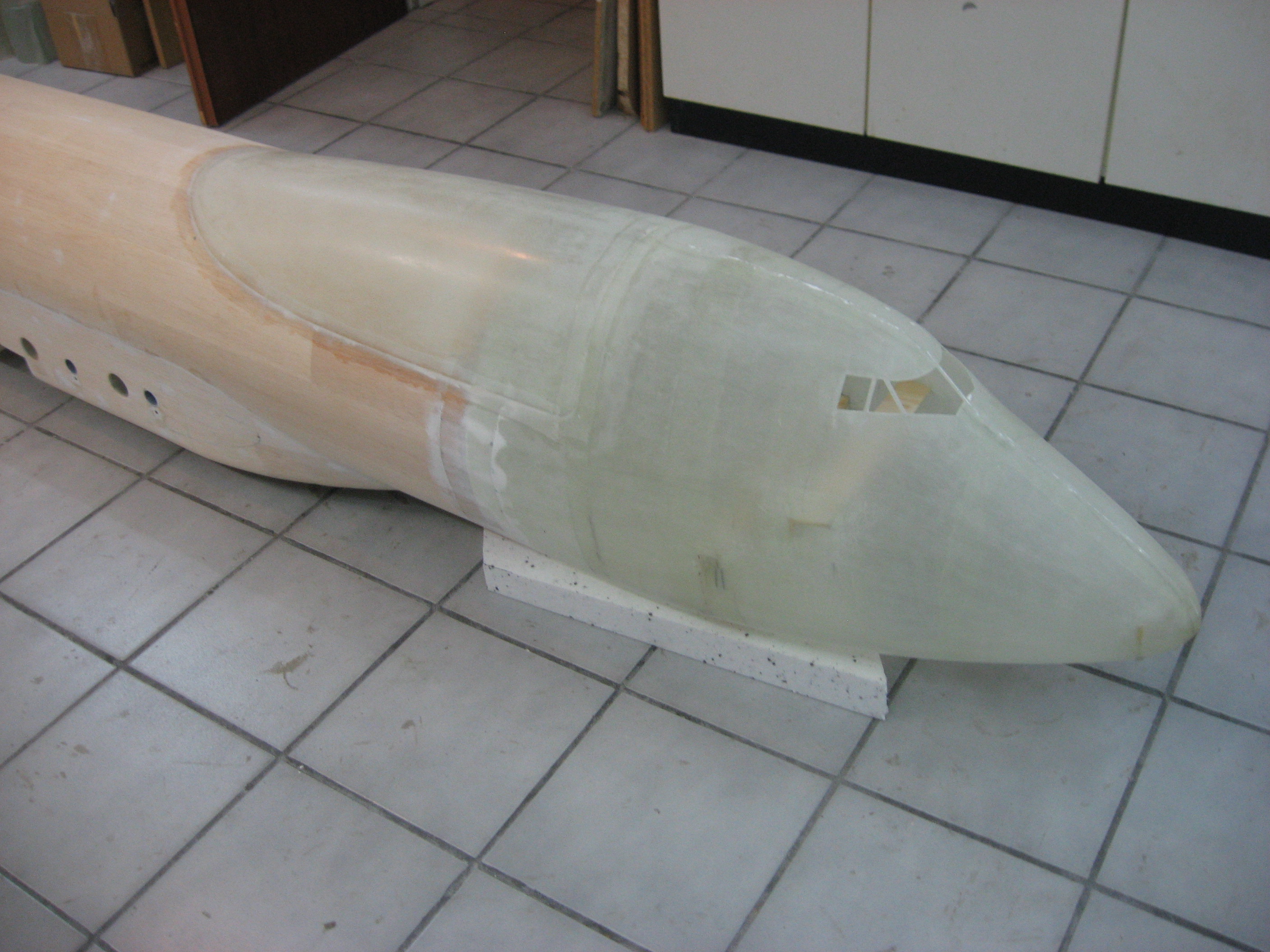

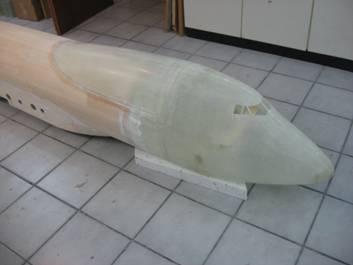

   Nose section





   Upper deck                                                                                                                     Upper deck extension





   Combination for B747-100/-200/SP and all Freighters                                         Extended upper deck for B747-300/-400

                                                                                                                                             B747-8i requires two extensions

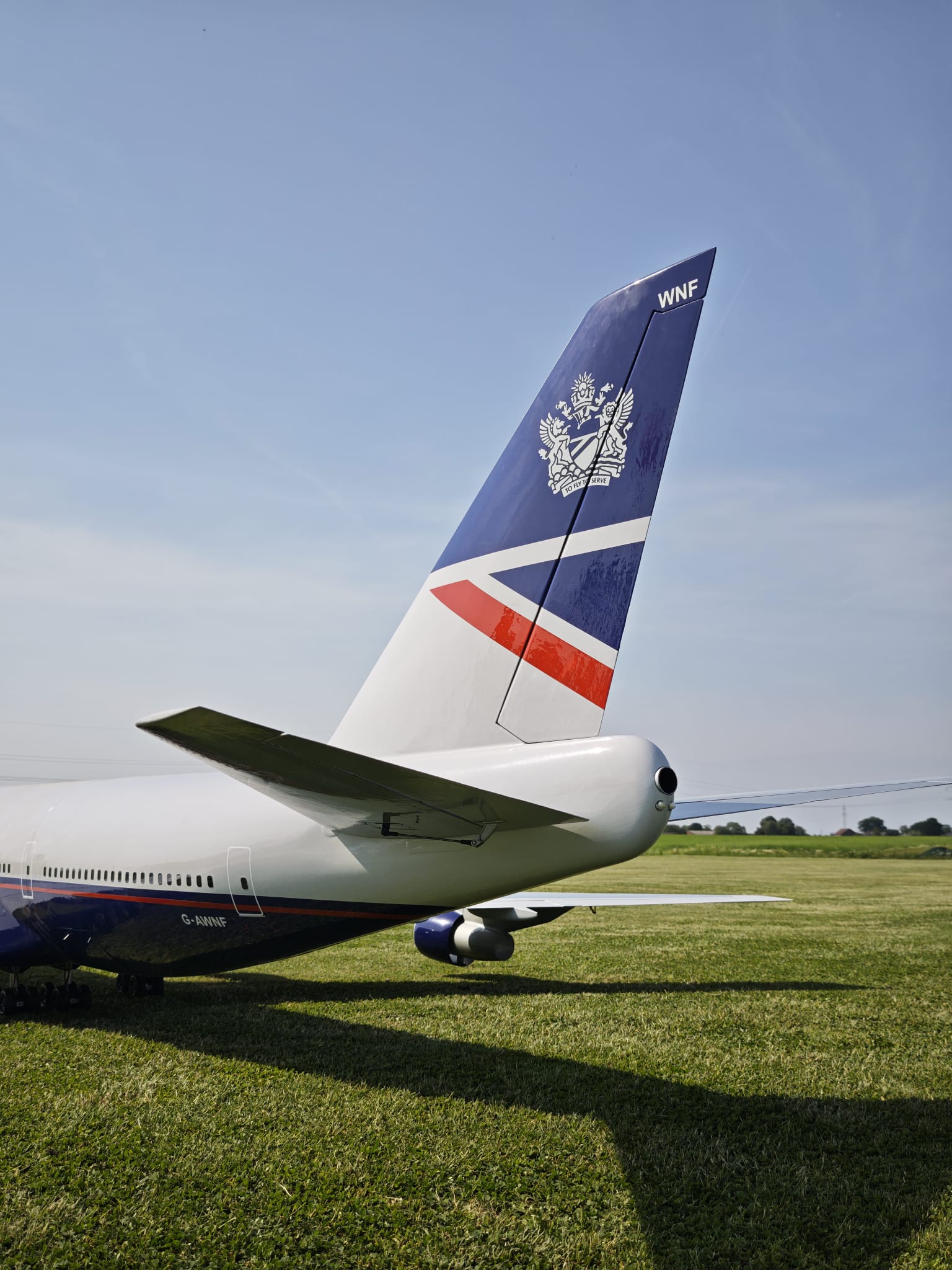

   Tail adapter                                                                                                                   Tail cone

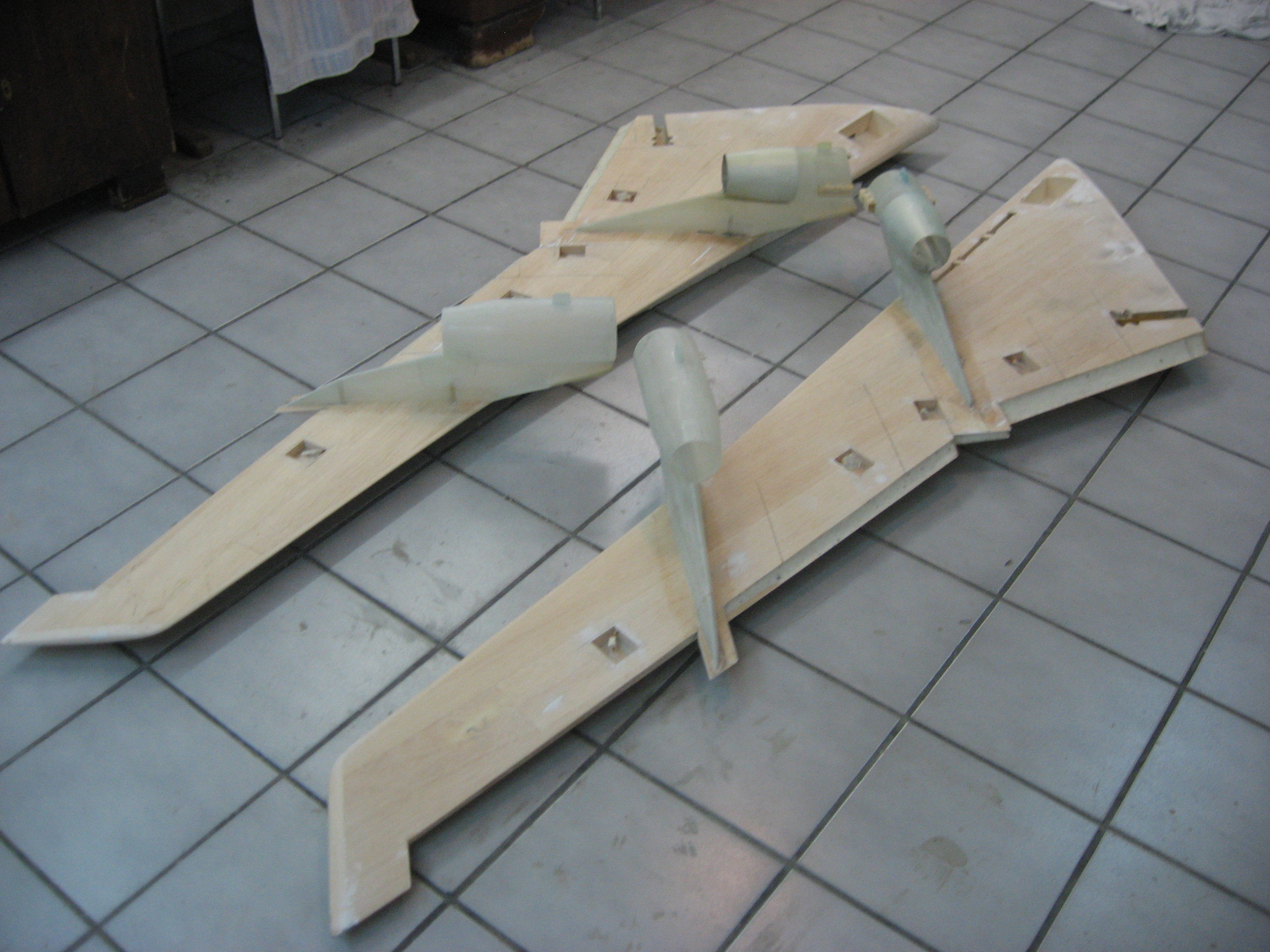

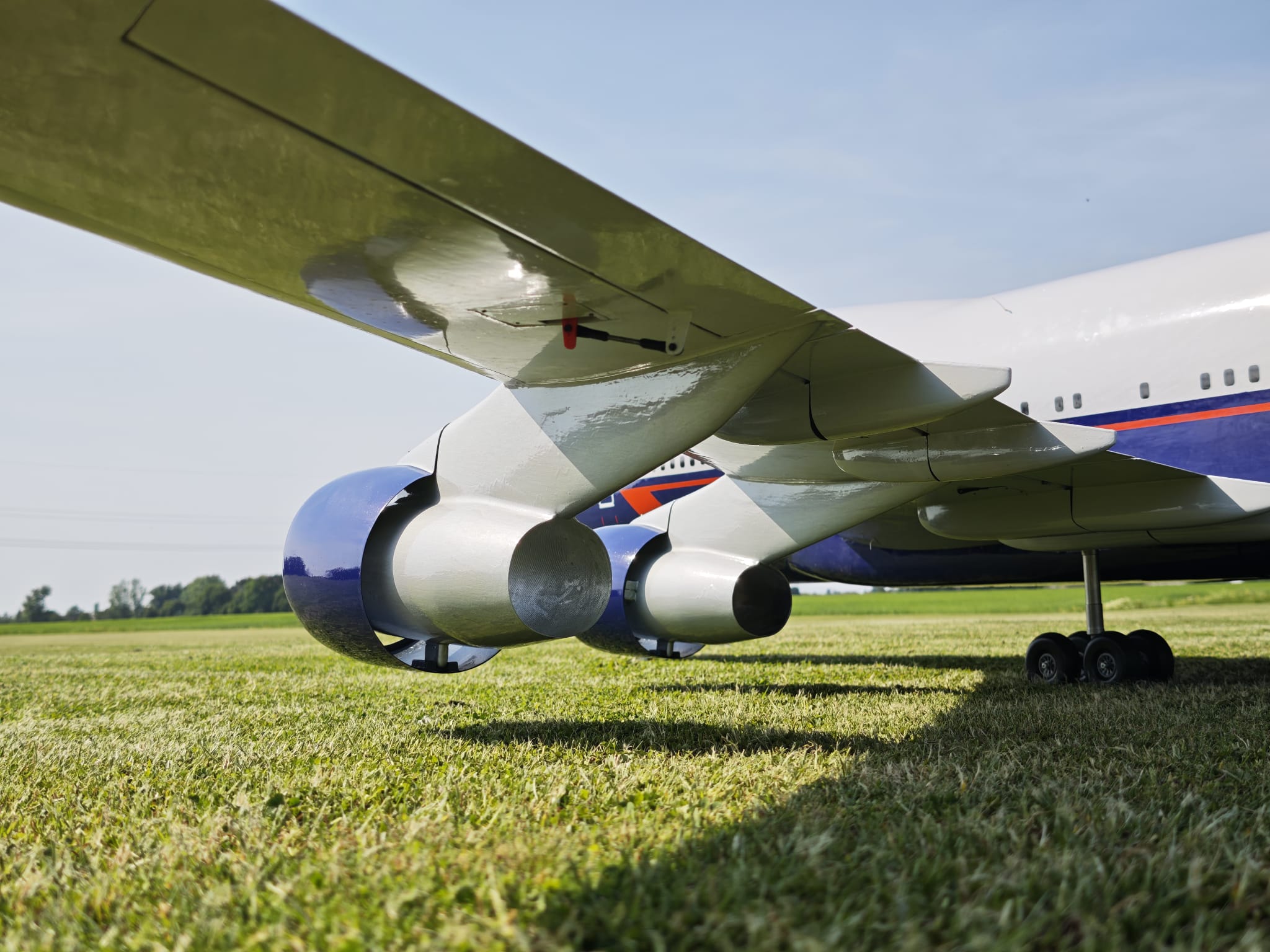

    Engine nacelle





   Set of fibreglass parts





   Option: air intakes for the nacelles
