Ilyushin 62



For many years the elegant looking IL-62 was the standard long range aircraft of Aeroflot and other Eastern Europe airlines. About 250 planes were built and there is still a small number of them in service.

The wing’s especially designed leading edge gives outstanding low speed characteristics for the modelplane. Also engine failure handling is easy because of the close to fuselage mounted engines and the large vertical stabilizer. One can say that the IL-62 is the best start-up airliner model. The all-moving horizontal stabilizer provides good pitch control at all speeds.







Powerplant:    Glow:               2  x  10  to 12 cc  (.60 to .75 cu.in.) engines

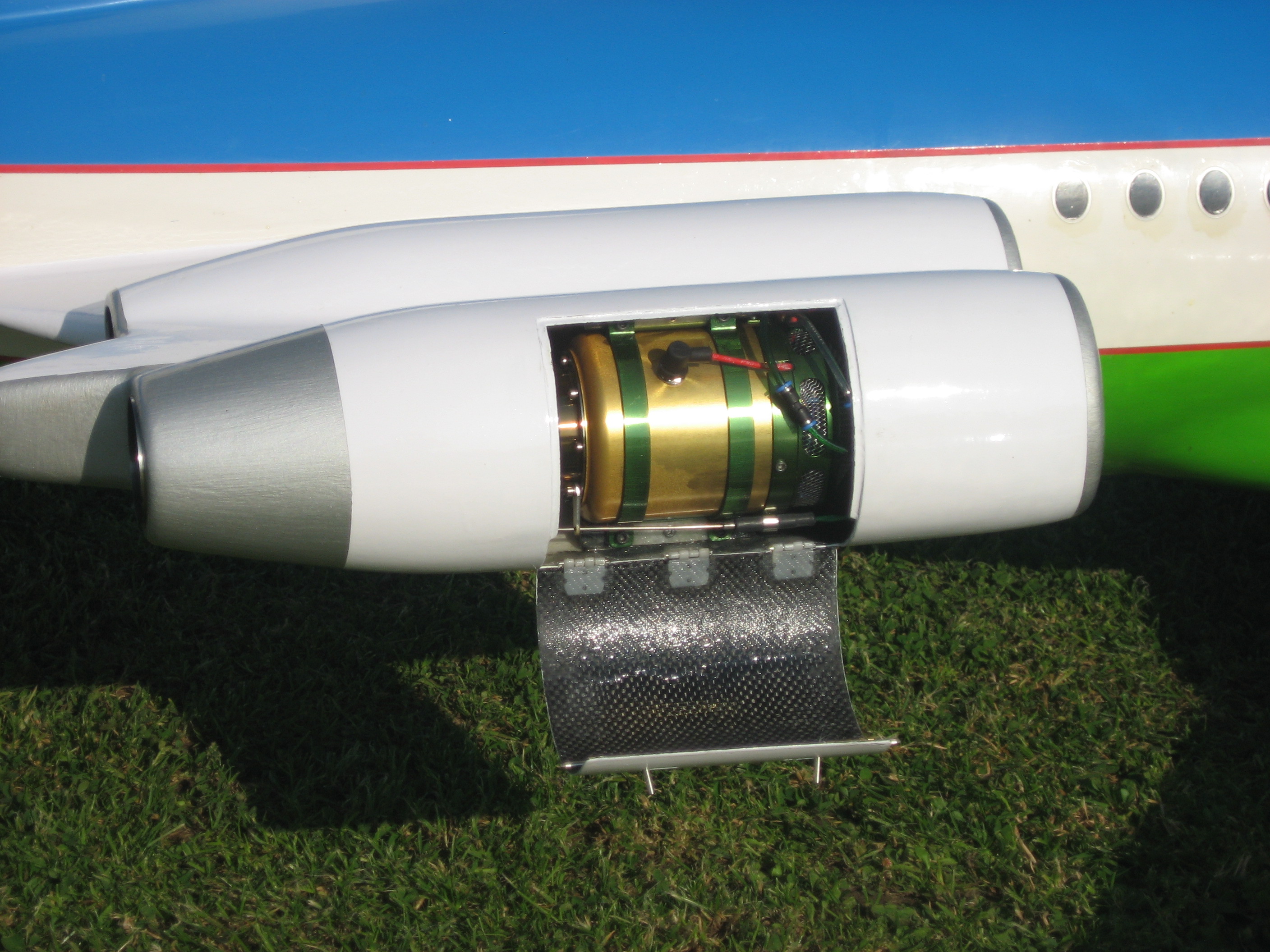

                           Turbine:          2  x  40 N  (9 lbs.)  thrust

                                                     4  x  20 N  (4.5 lbs.)  thrust

                           Ducted Fan:  diameter up to  85 mm  (3.3’’)

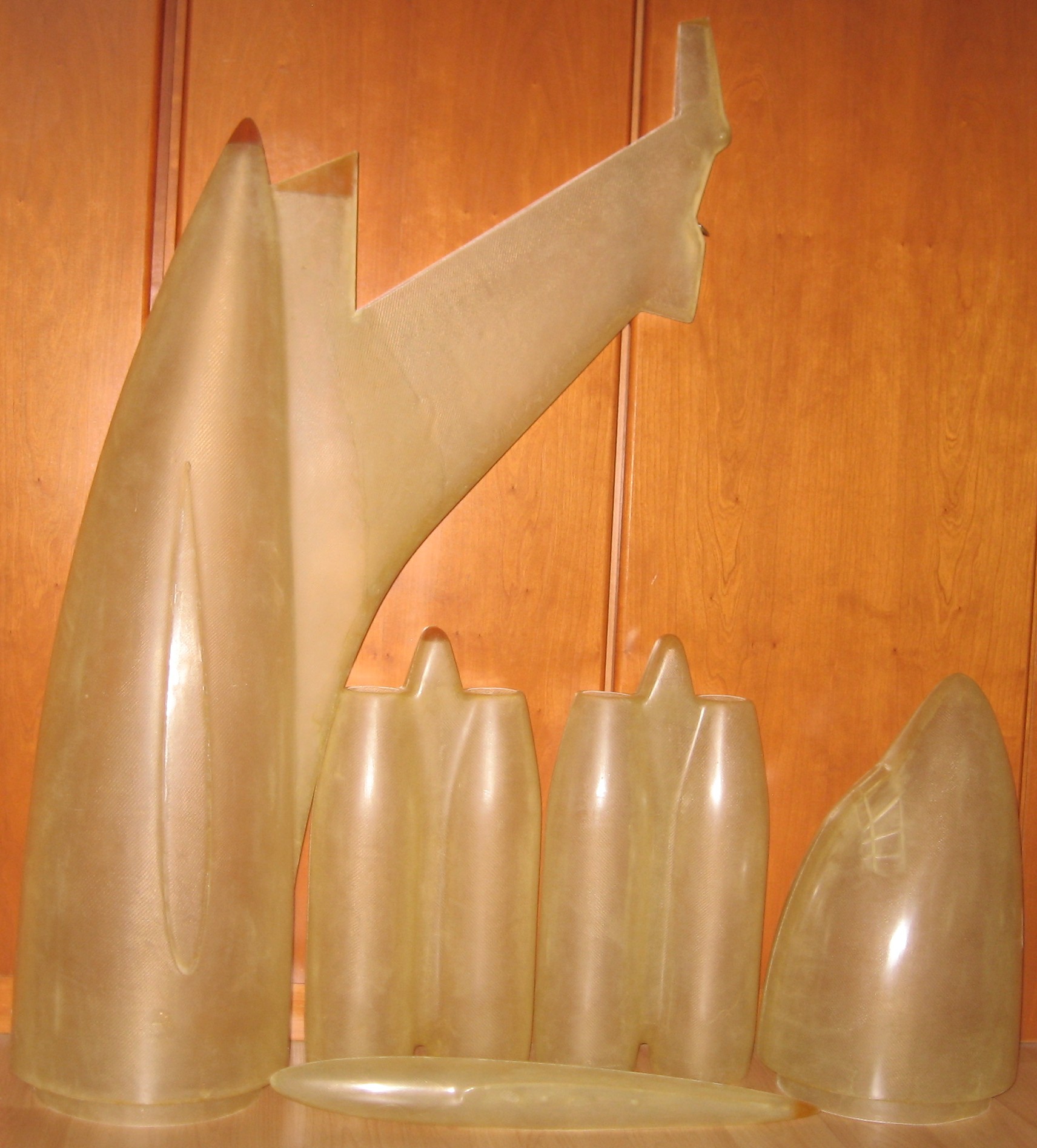

Specifications:                                                                                                                                          Fiberglass parts :        Norbert Rauch



                                Span               Length                Wing Area                  Weight                                     Foam cores:                         Manfred Köster



 IL-62        2.70 m  (106’’)     3.32 m  (131’’)     109.2 dm²  (1693 sq.in.)     12 kg  (26 lbs.)                                Retracts:                              Hawe Modellbau

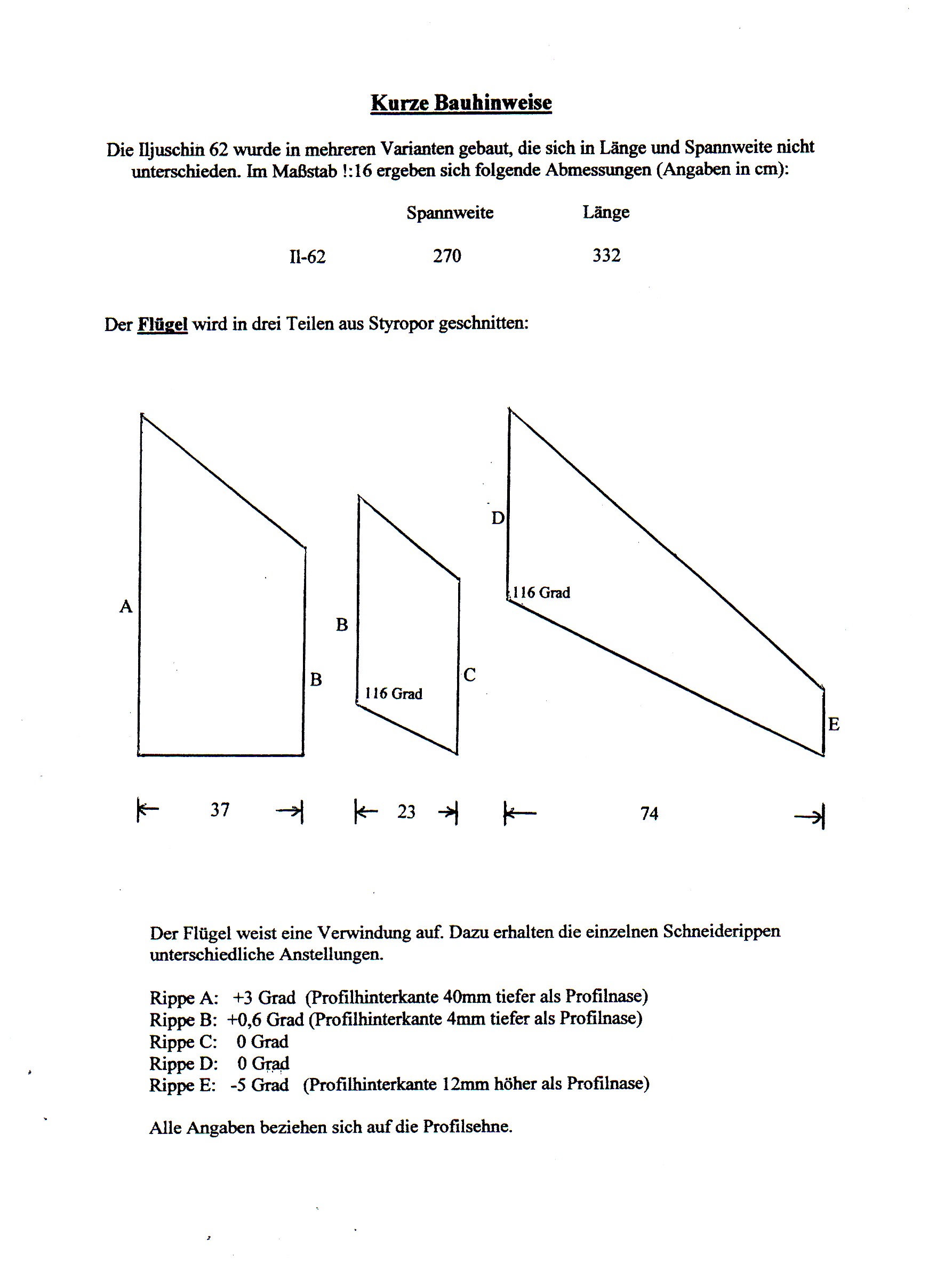

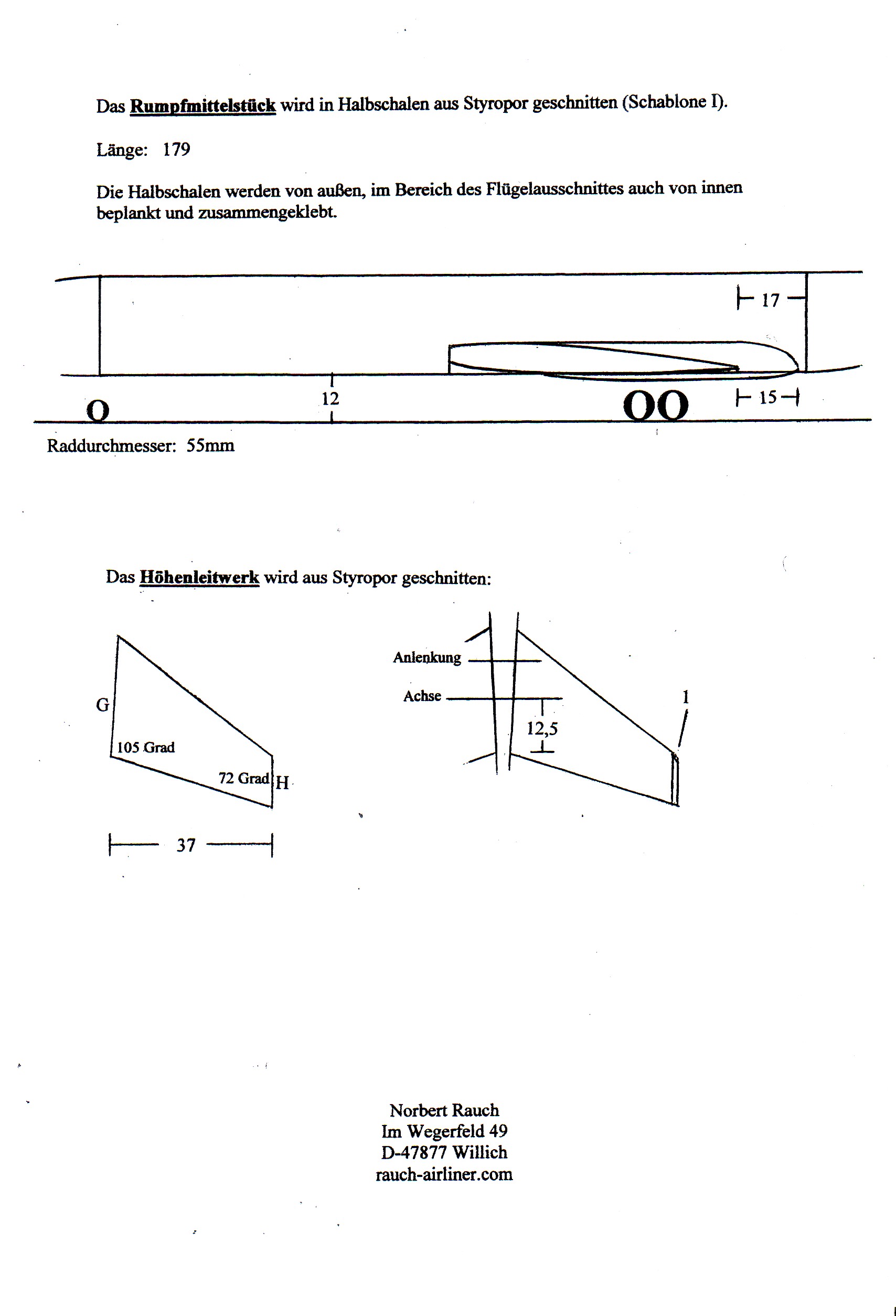

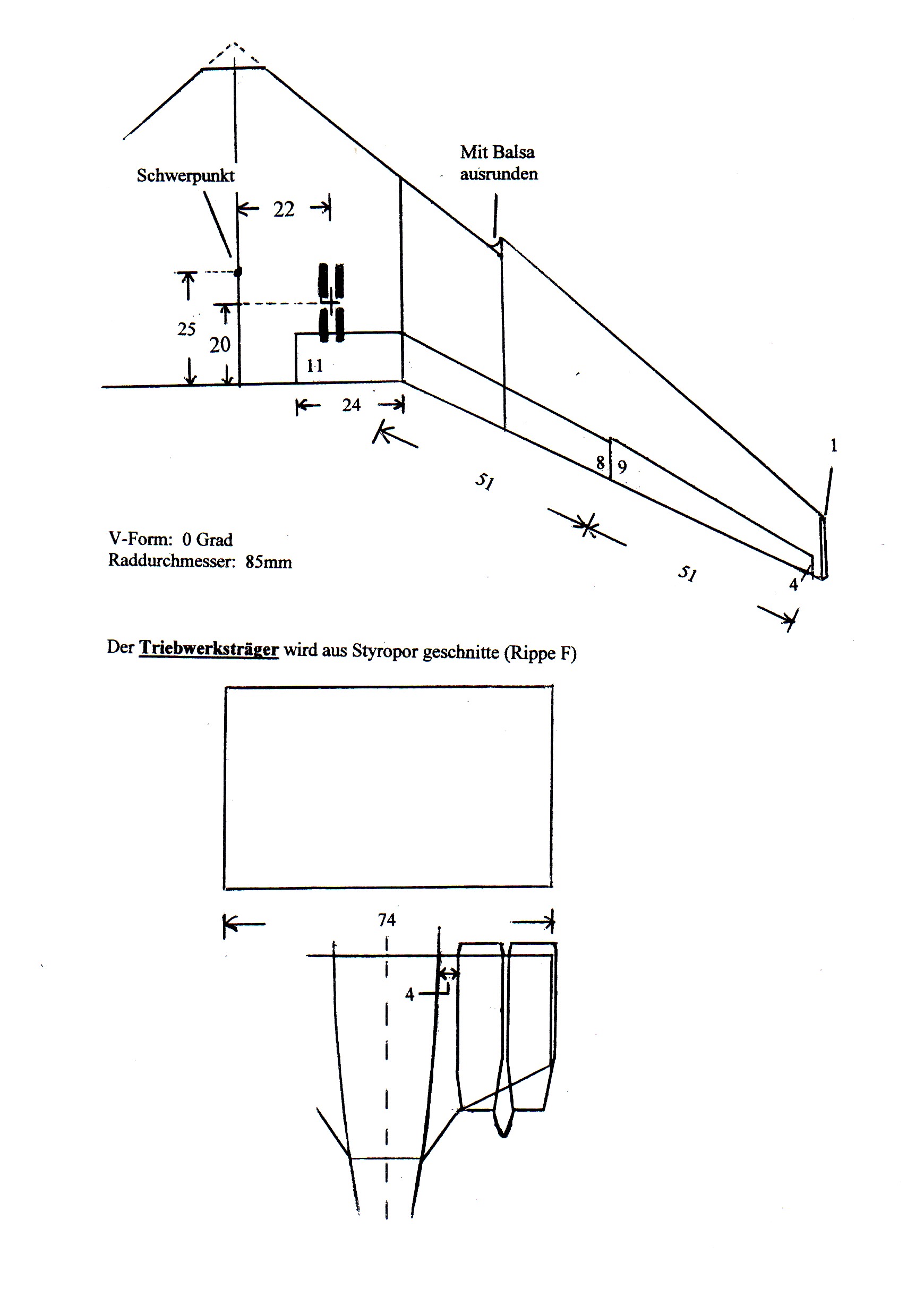

                                                                                                                                                                      Basic Instructions:

Videos:  (1) (2) (3)

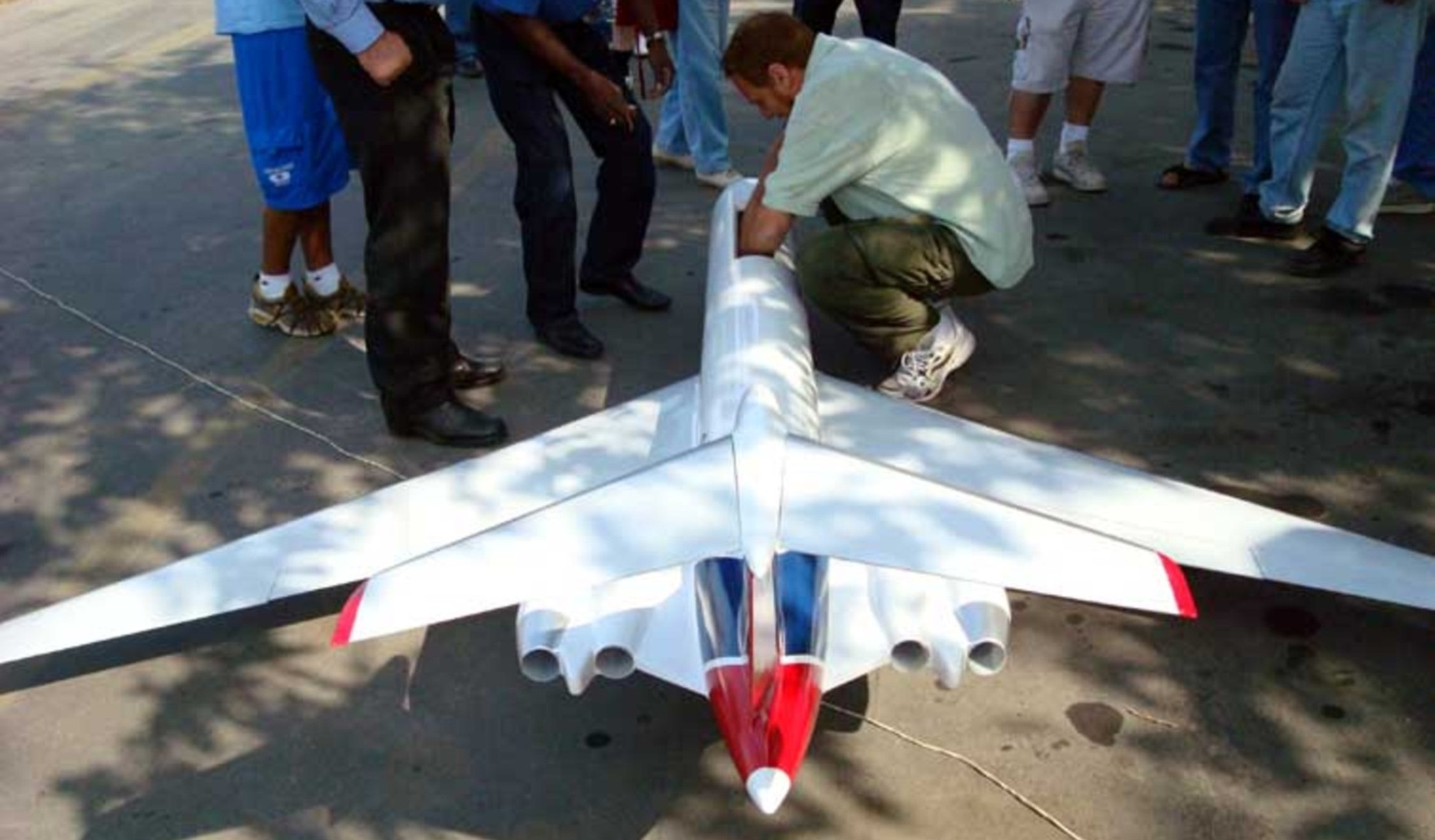

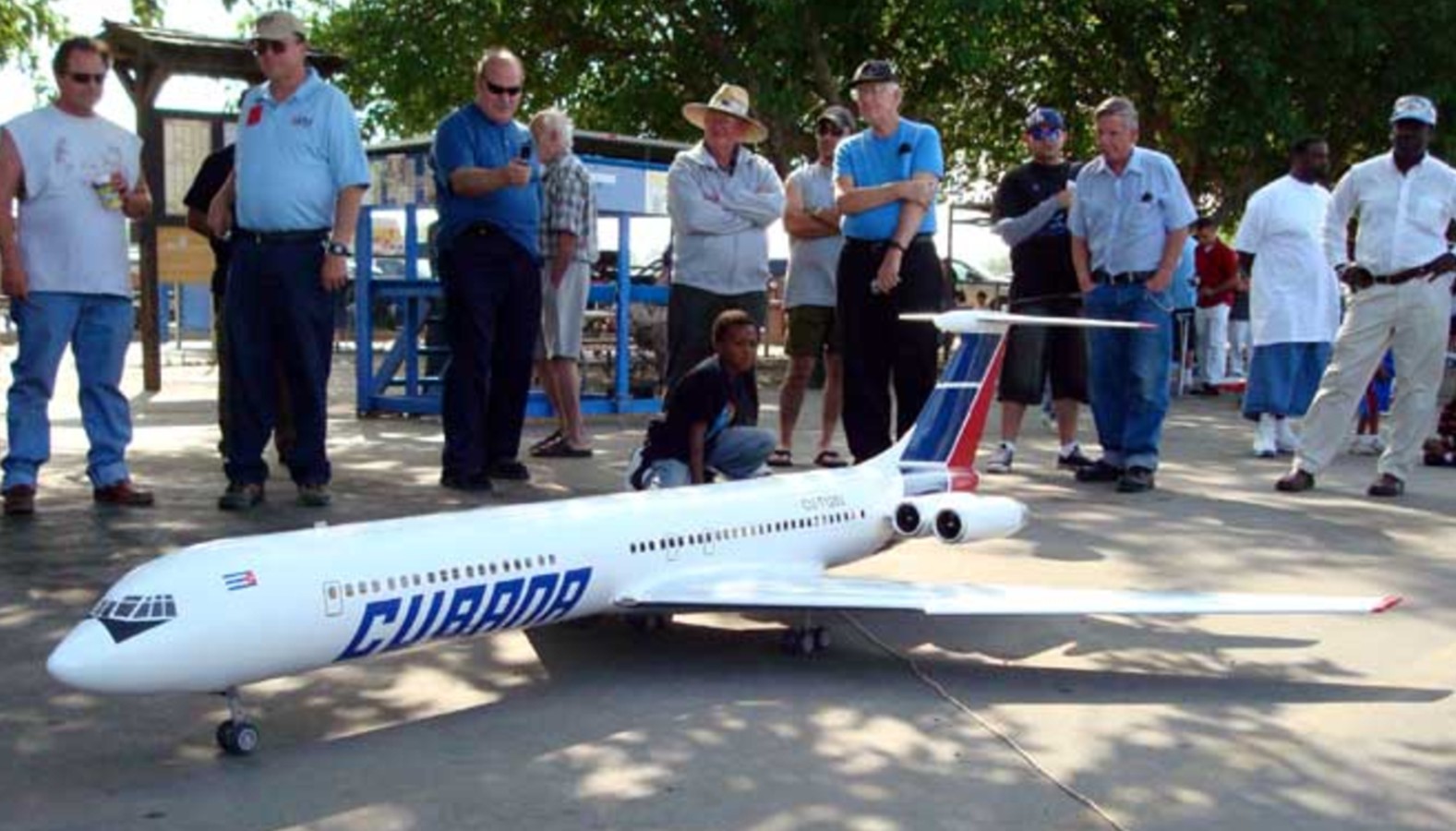

Pics:



   (Norbert Rauch)







   (Norbert Rauch)



   (Adi Pitz)



   (Peter Michel)



   (Dieter Döring)





   (Lonnie DeWitt-Sanders)
