Douglas DC-9



For short-range flights Douglas developed the DC-9. The fuselage was stretched three times as the airlines needed more capacity. Production was terminated in favour of the MD-80 after the completion of 976 aircraft.

This DC-9 model is a compact plane providing an elegant look in the air. The installation of an 3-axis gyro is recommended.







Powerplant:    Glow:               2  x  6.5 cc  (.40 cu.in.)  engines

                           Turbine:          2  x  25 N  (5.5 lbs.)  thrust

                           Ducted Fan:   2  x  70 mm







Specifications:



                             Span            Length               Wing Area                  Weight

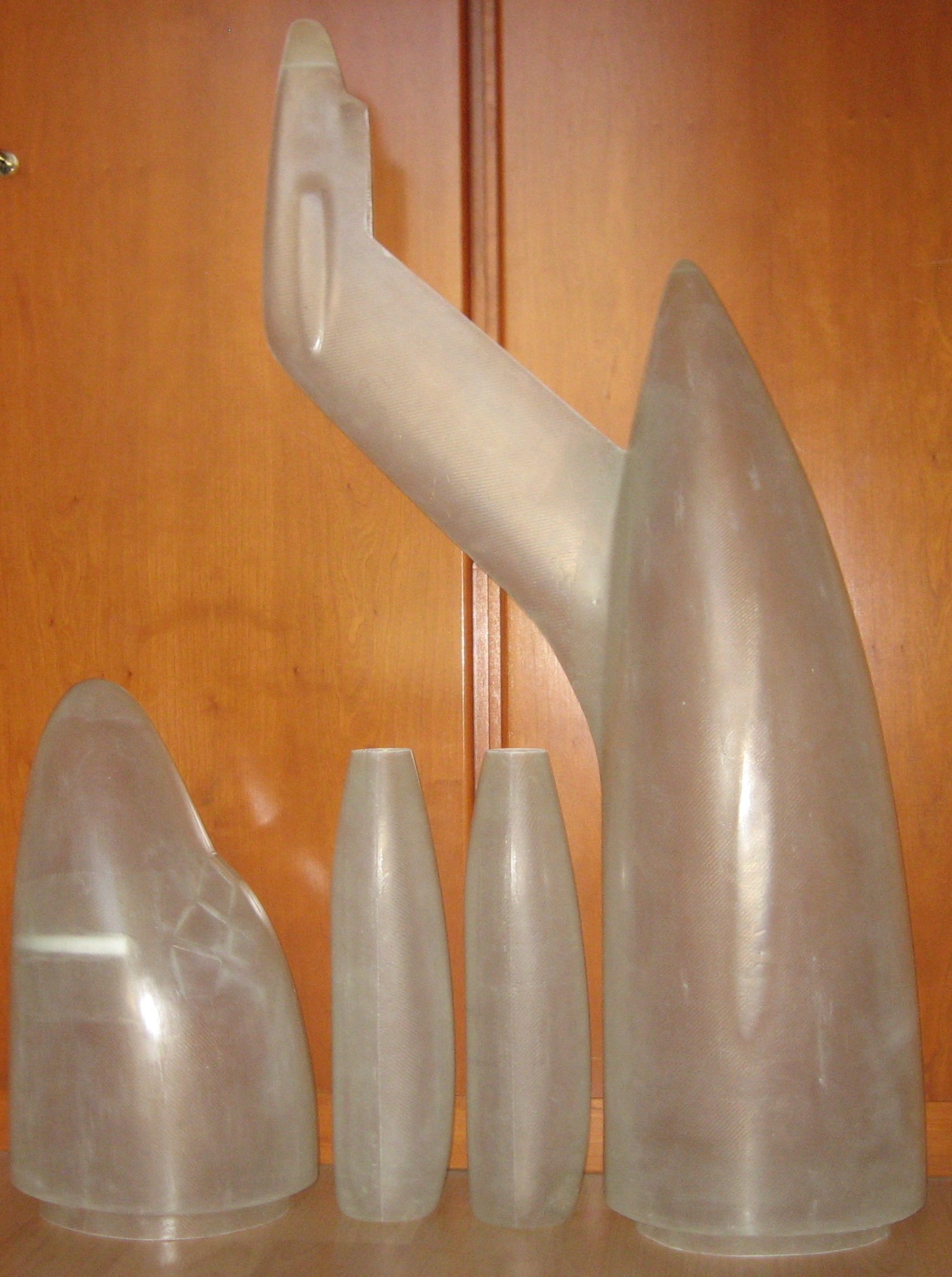

                                                                                                                                                                               Fiberglass parts : Norbert Rauch

 DC-9-10       1.70 m  (67’’)     1.99 m  (78’’)       35.4 dm²  (549 sq.in.)       6  kg  (13 lbs.)

 DC-9-20       1.78 m  (70’’)    1.99 m  (78’’)       36.3 dm²  (563 sq.in.)       6  kg  (13 lbs.)                                                             Foam cores:      ---

 DC-9-30       1.78 m  (70’’)     2.27 m  (89’’)       36.3 dm²  (563 sq.in.)      6.5 kg (14 lbs.)

 DC-9-40       1.78 m  (70’’)     2.39 m  (94’’)       36.3 dm²  (563 sq.in.)      6.5 kg (14 lbs.)                                                            Retracts: Hawe Modellbau

 DC-9-50       1.78 m  (70’’)     2.54 m (100’’)      36.3 dm²  (563 sq.in.)       7  kg  (15 lbs.)

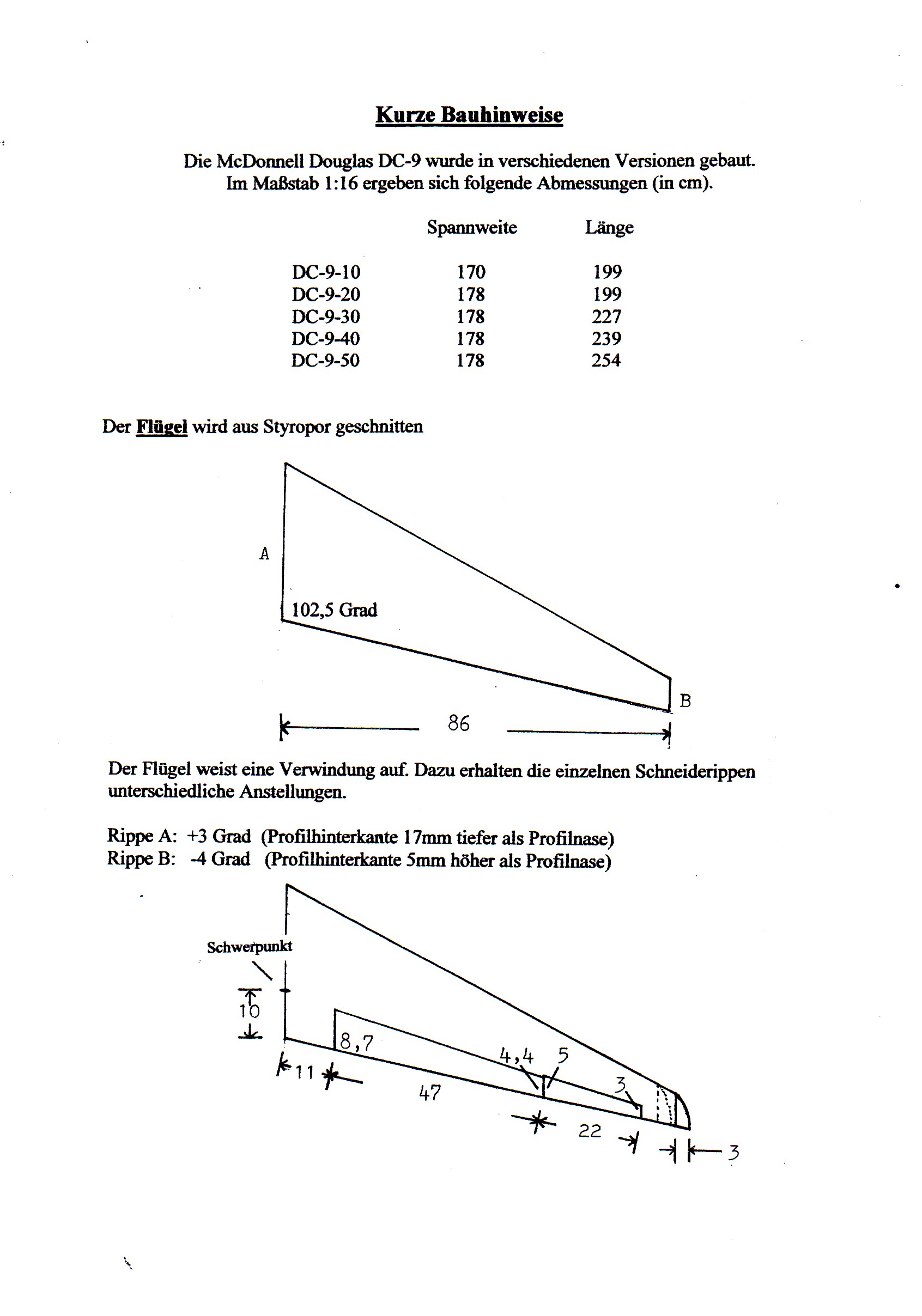

                                                                                                                                                                      Basic Instructions:

Pics:





    (Norbert Rauch)

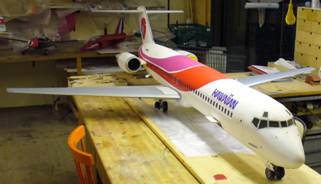

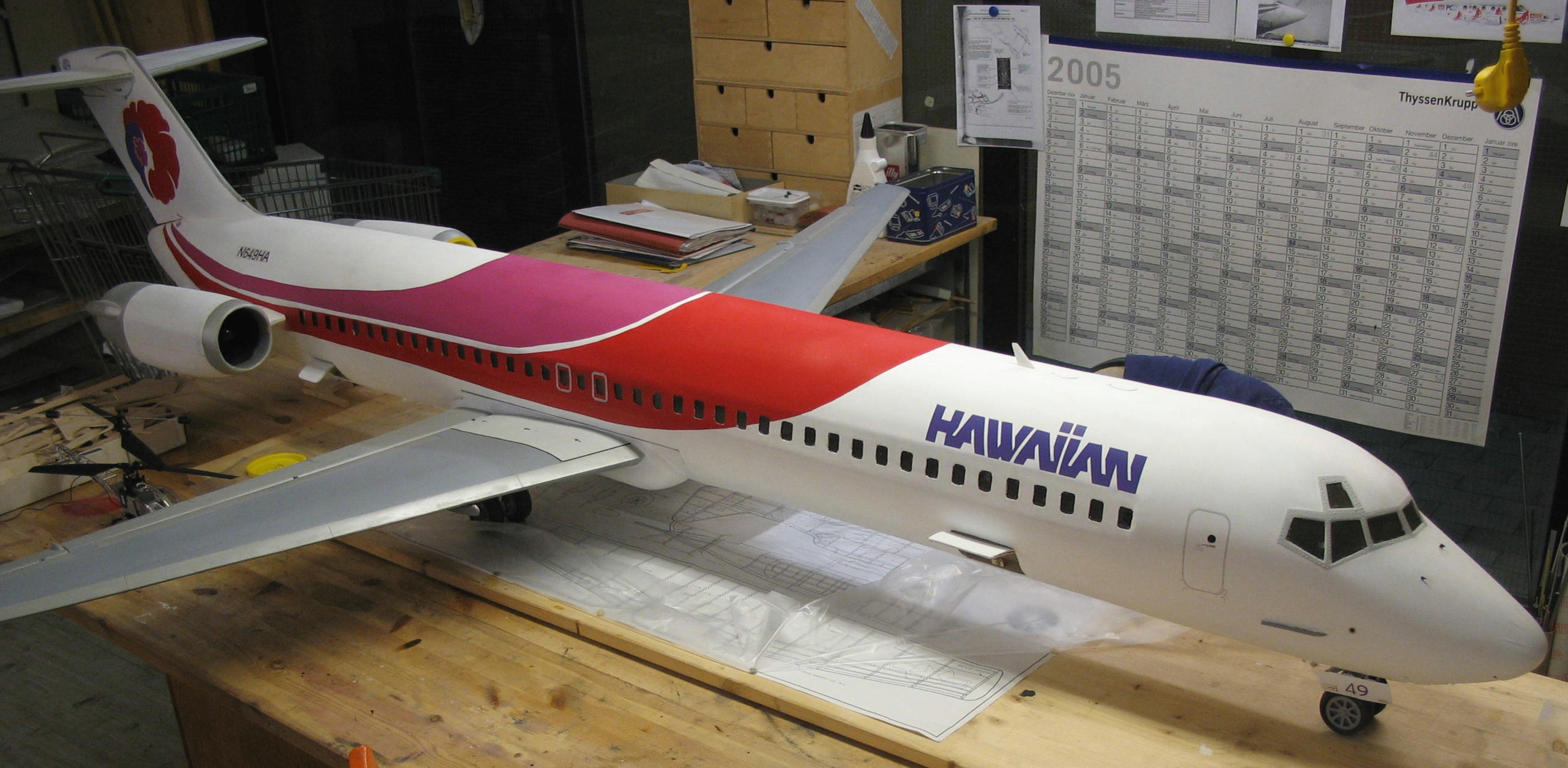

   (Cor Beckers)

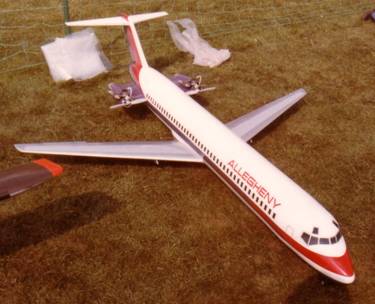

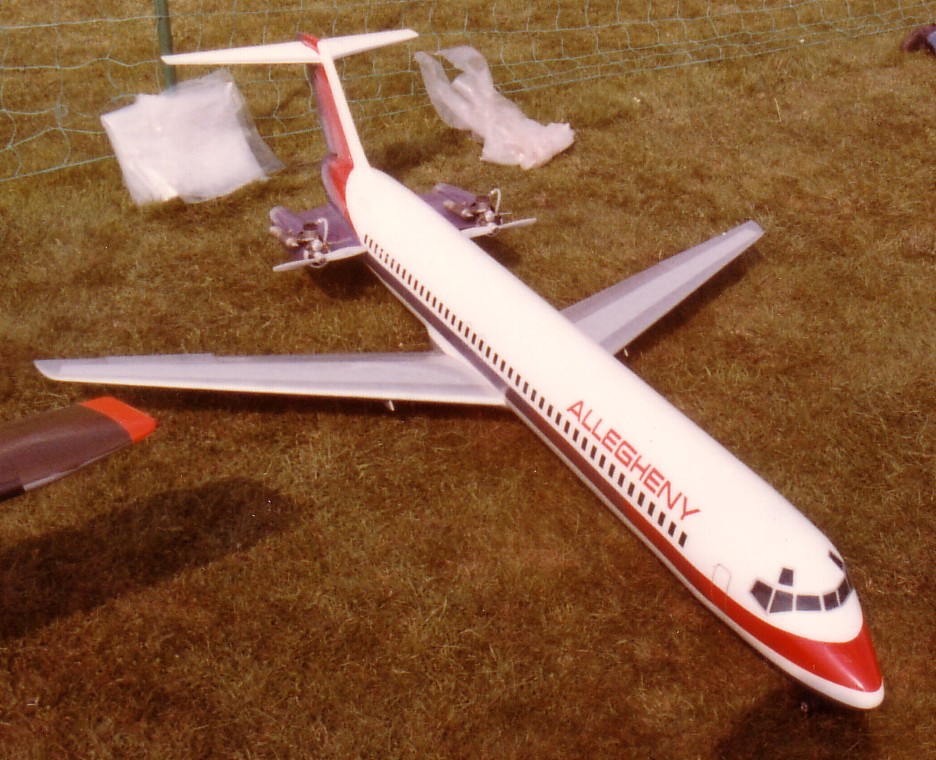

   (Wolfgang Semler)
