Baubeschreibung MD-11

Building an MD-11



Teil 2:  Flügel

Part 2:  Wing

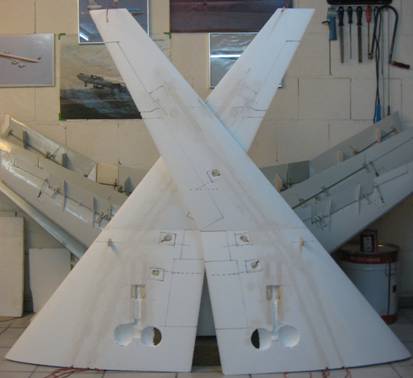

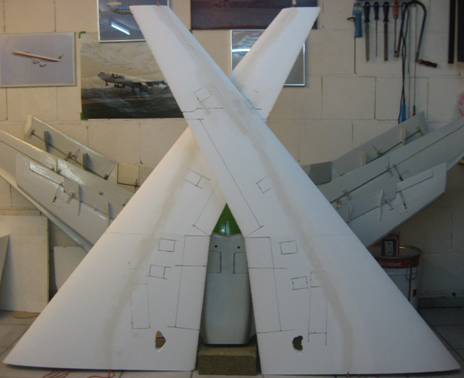

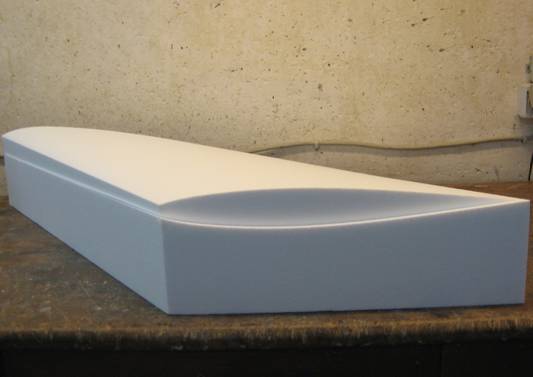

Profile und Verwindung am linken Innenflügel deutlich erkennbar

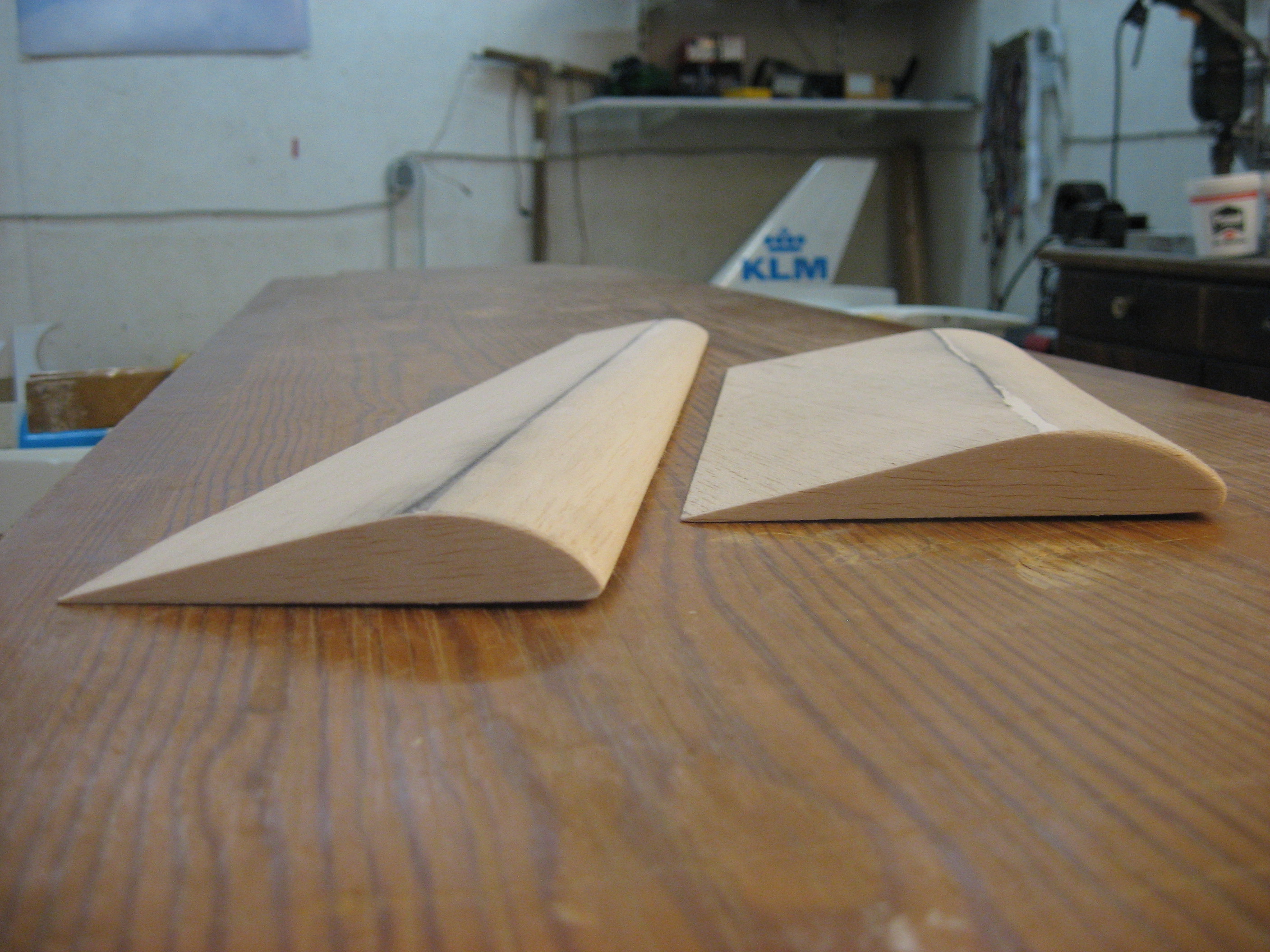

Airfoils and washout clearly visible on the LH inboard wing





Die Styroporkerne sind zum Beplanken vorbereitet durch den Einbau von Fahrwerksträgern, Steckung des abnehmbaren Aussenflügels sowie Litze für Servos und Beleuchtung

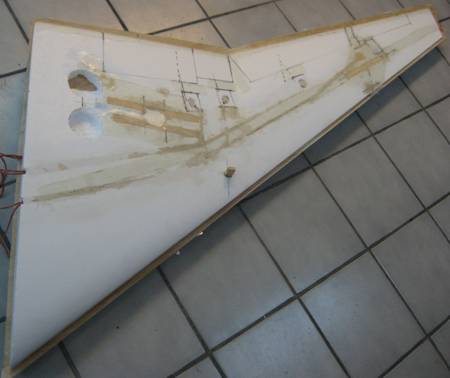

The styrofoam cores are prepared for balsa sheeting by installing undercarriage mounts, tubes for the removable outer wings and servo and nav/strobe-lights wiring





Auf die Flügelkerne werden gezielt Kohle-/Glasfaser-Verstärkungen mit Epoxidharz aufgelegt …

On some points a layer of carbon/glass is attached with epoxy resin to reinforce the cores …



… die 1 mm Flügelbeplankung wird ebenfalls dünn mit Harz eingestrichen …

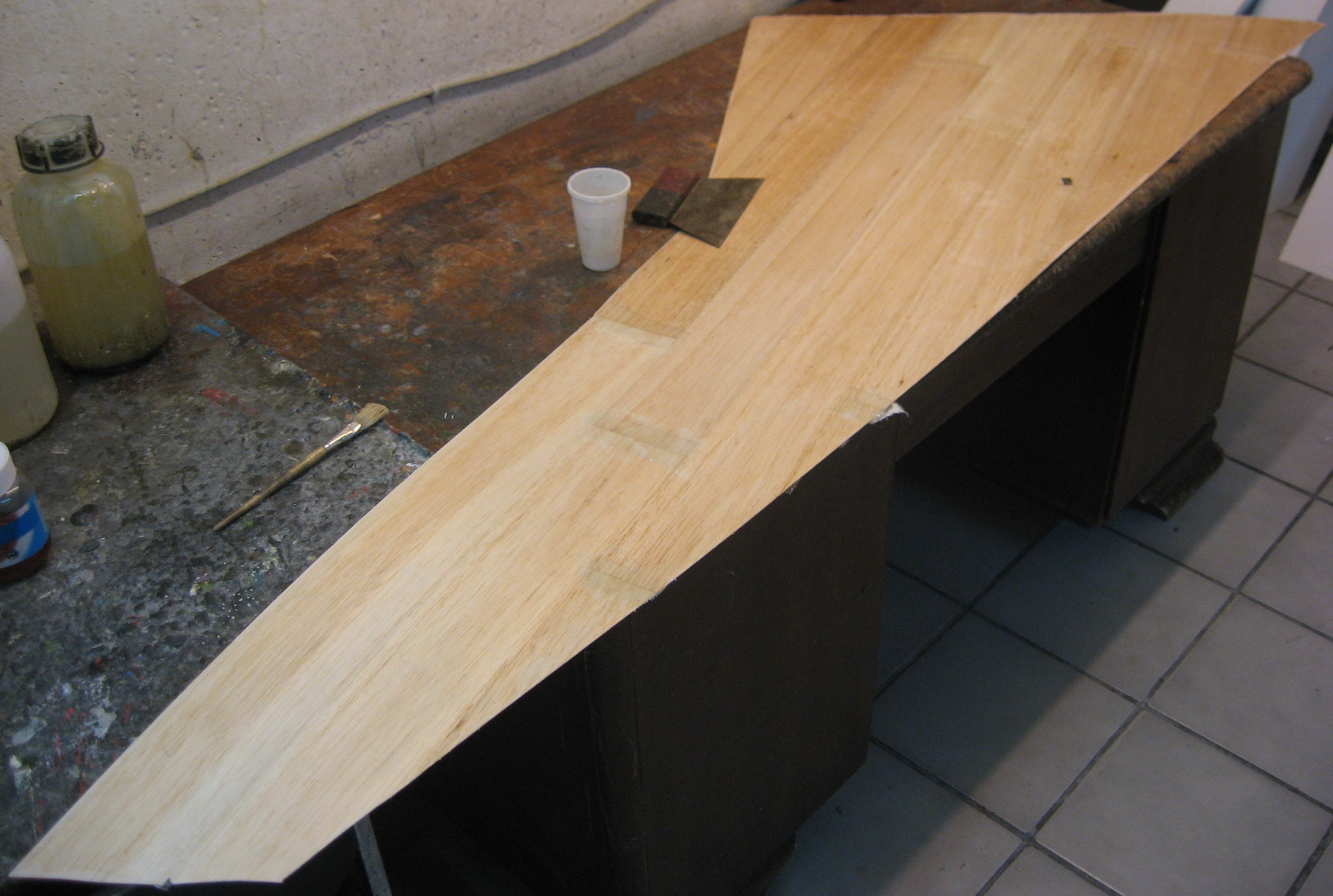

… the 1 mm balsa also gets a thin coat of resin …

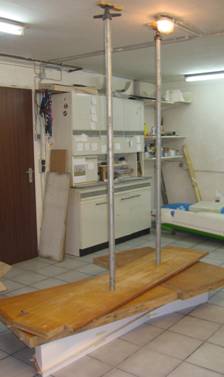

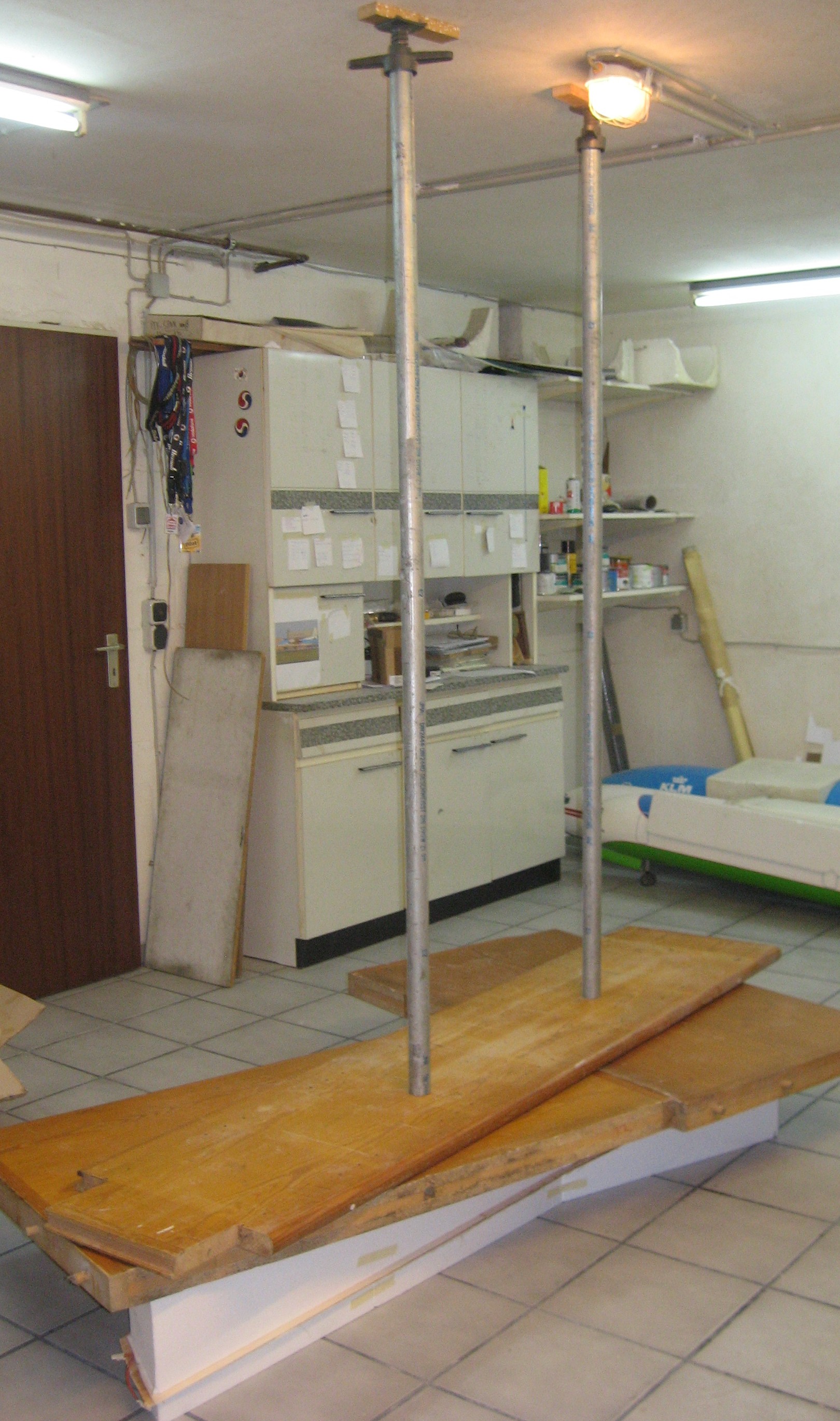

… und alles wird bis zum Aushärten des Harzes gepresst

… and high pressure is necessary until the resin has hardened

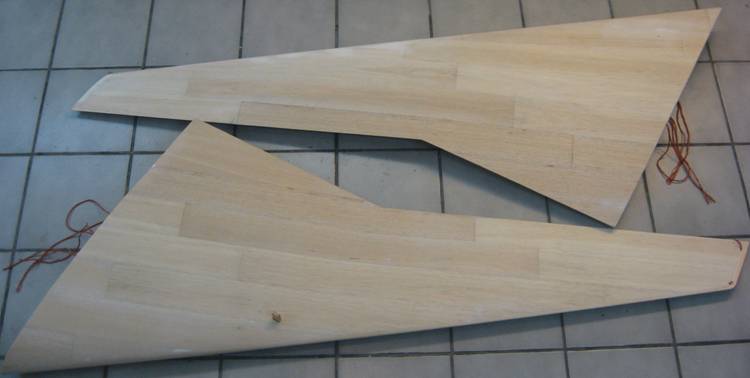

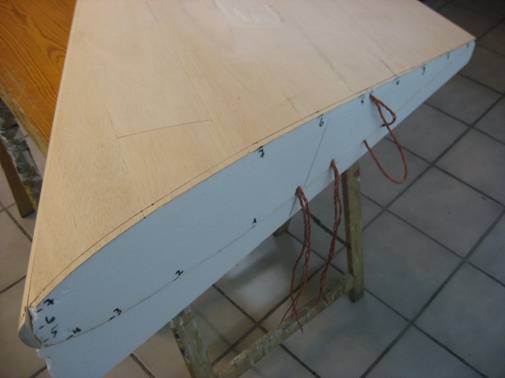

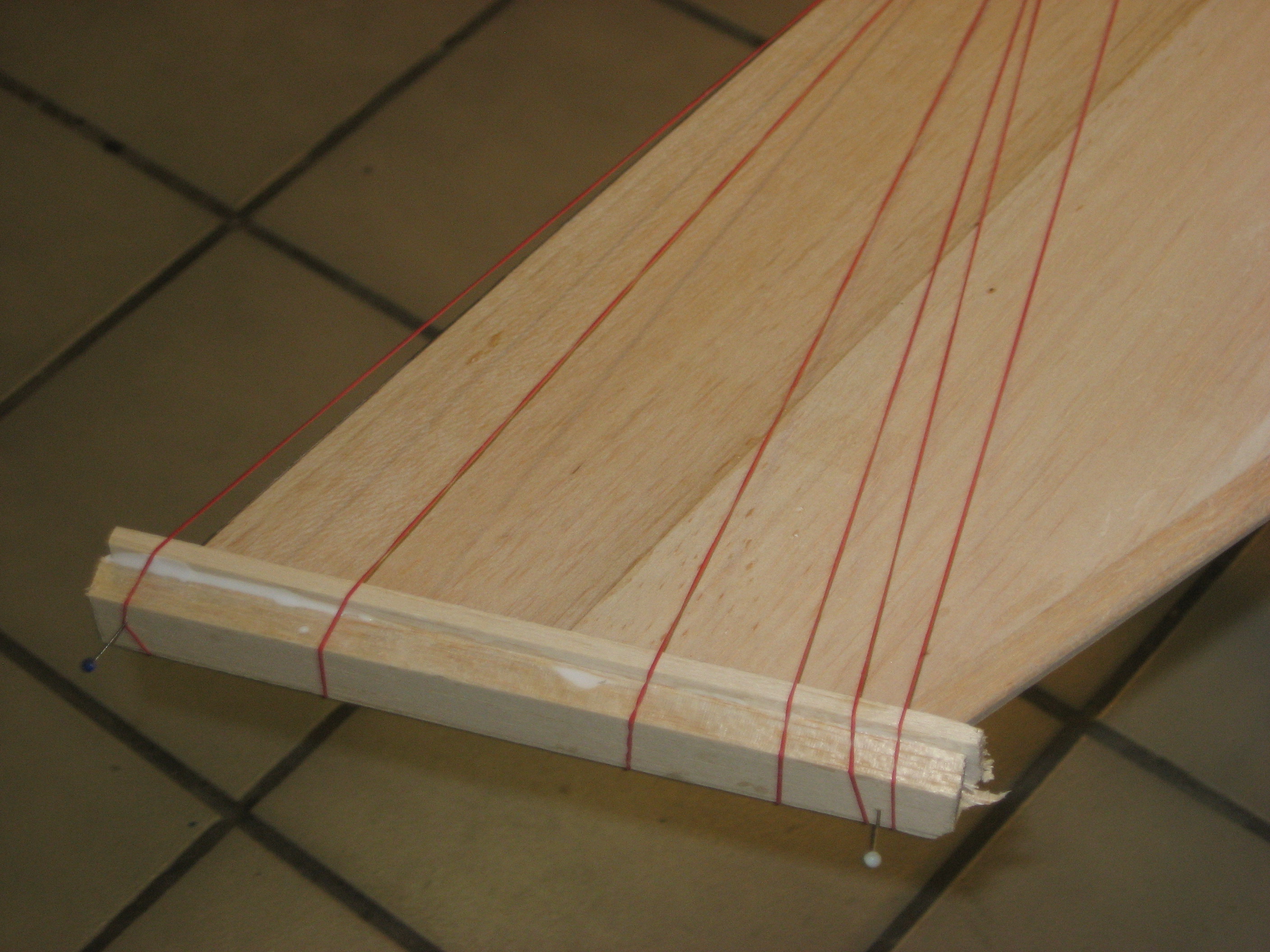

Nasenleiste und Randbogen angebracht

Leading edge and wingtip attached

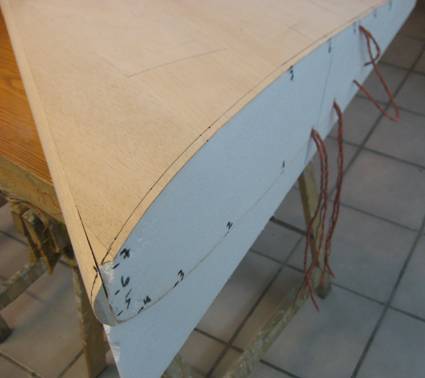

Flügel verschliffen

Wings sanded

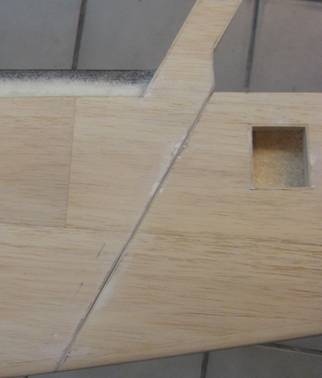

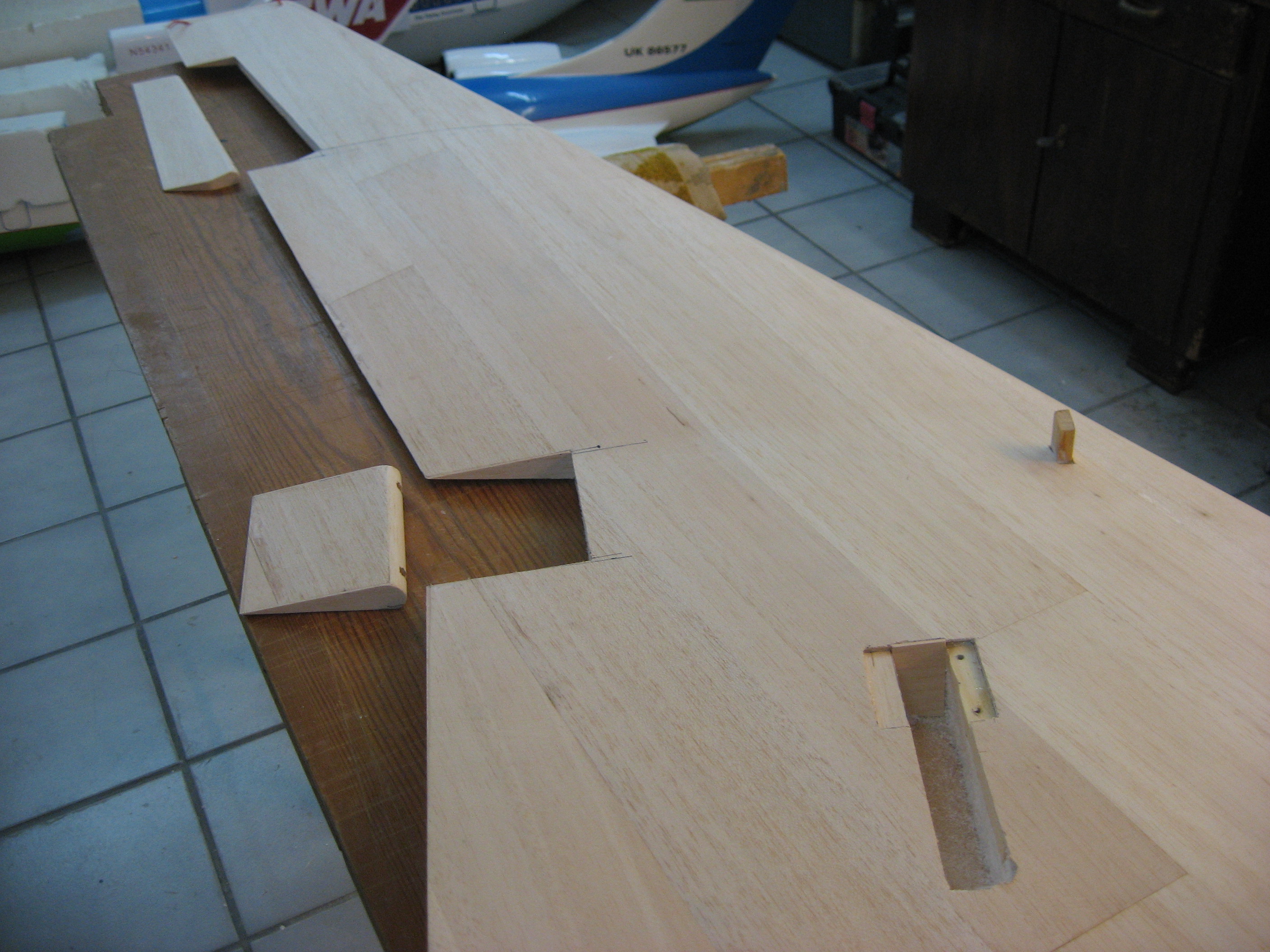

Querruder ausgeschnitten und Fahrwerksträger freigelegt

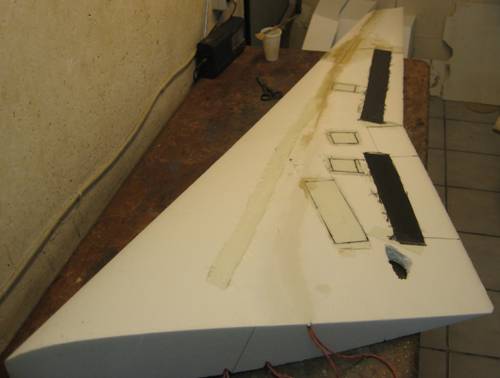

Ailerons cut out and gear mounts opened





Landeklappen

Flaps

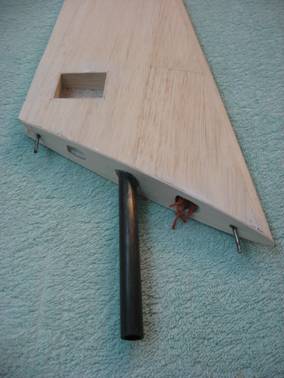

Abnehmbare Aussenflügel

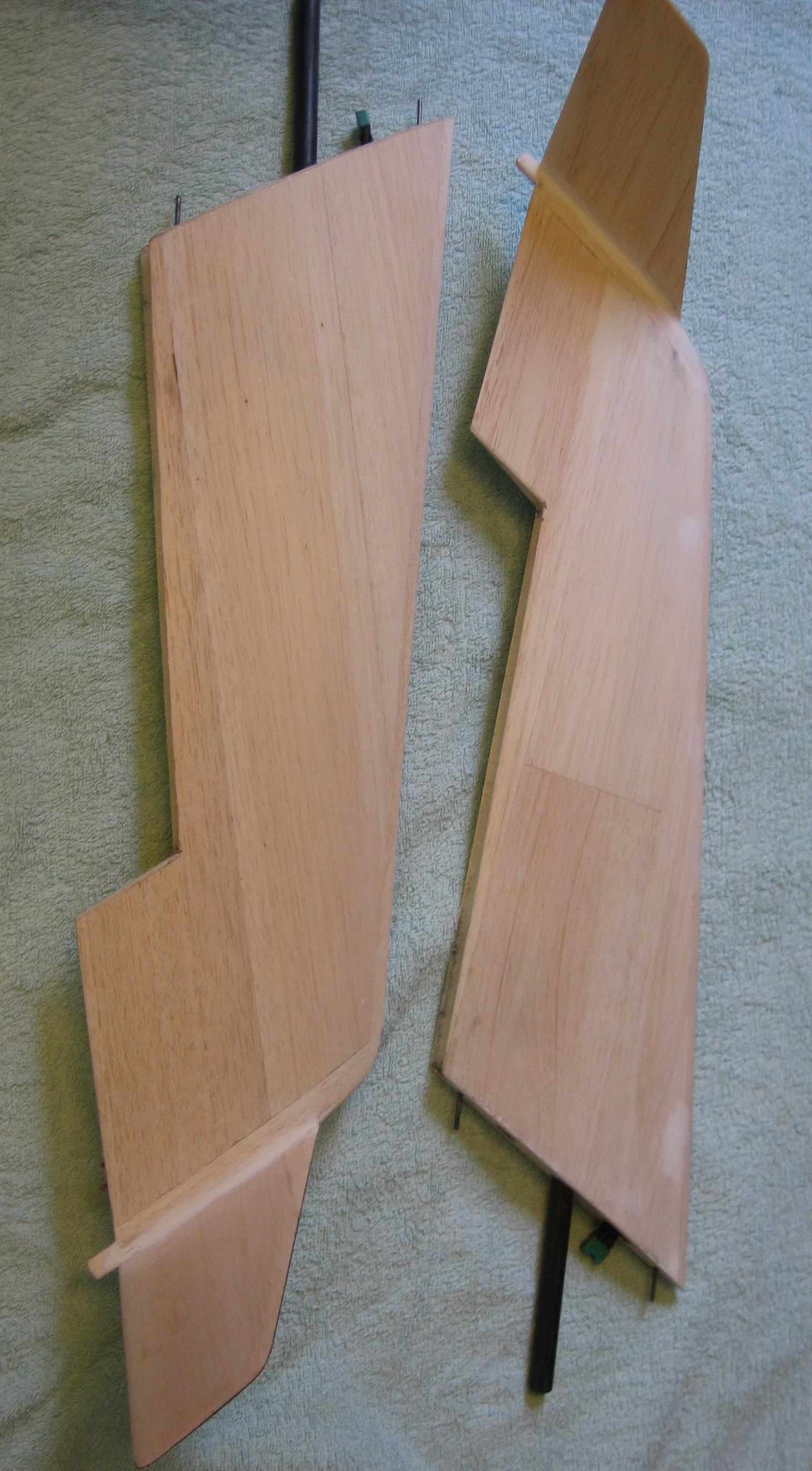

Detachable outer wings

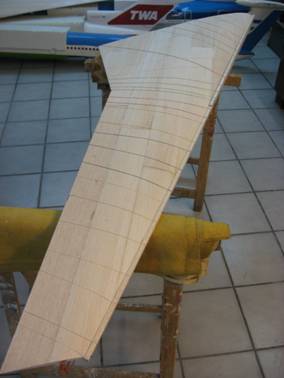

Winglets angebracht

Winglets attached

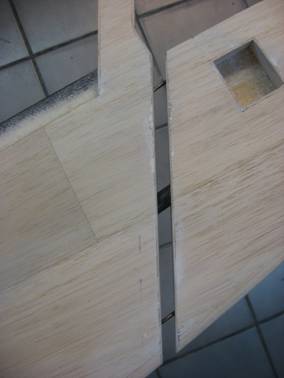

Für 3° V-Form muss an den Flügelwurzeln alle 19 mm Höhe jeweils 1 mm abgeschliffen werden

To achieve a dihedral of 3 degrees 1 mm has to be sanded away on every 19 mm wing root height

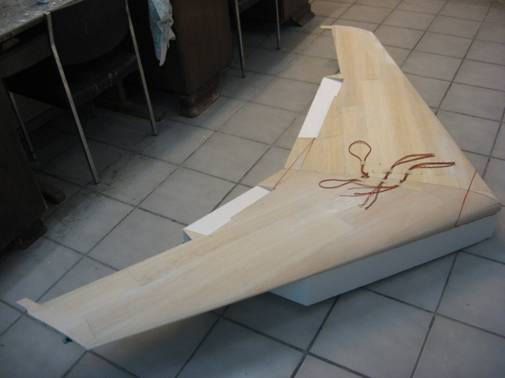

Hauptflügel zusammengeklebt

Main wings glued together

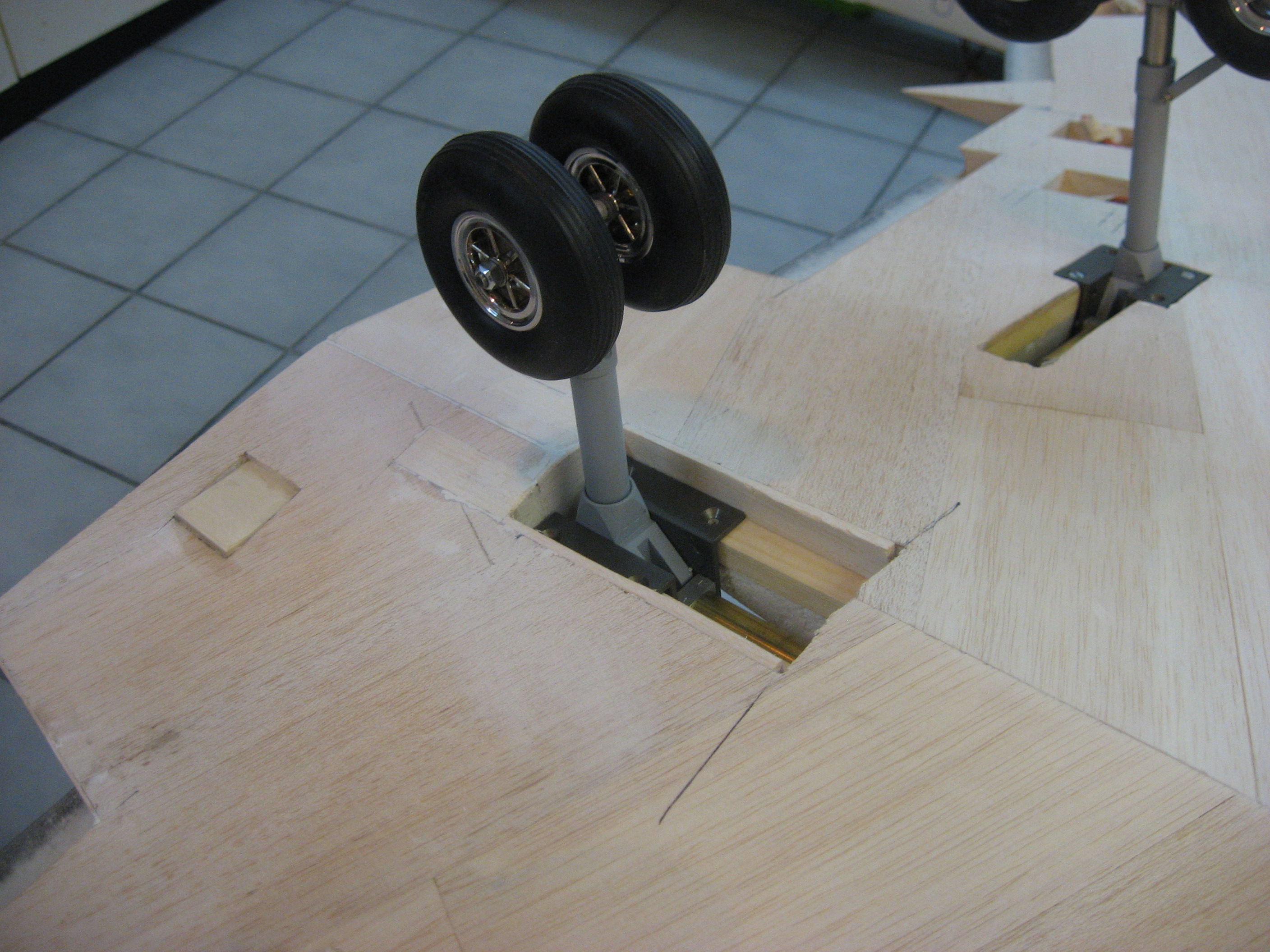

Zentrales Hauptfahrwerk eingebaut

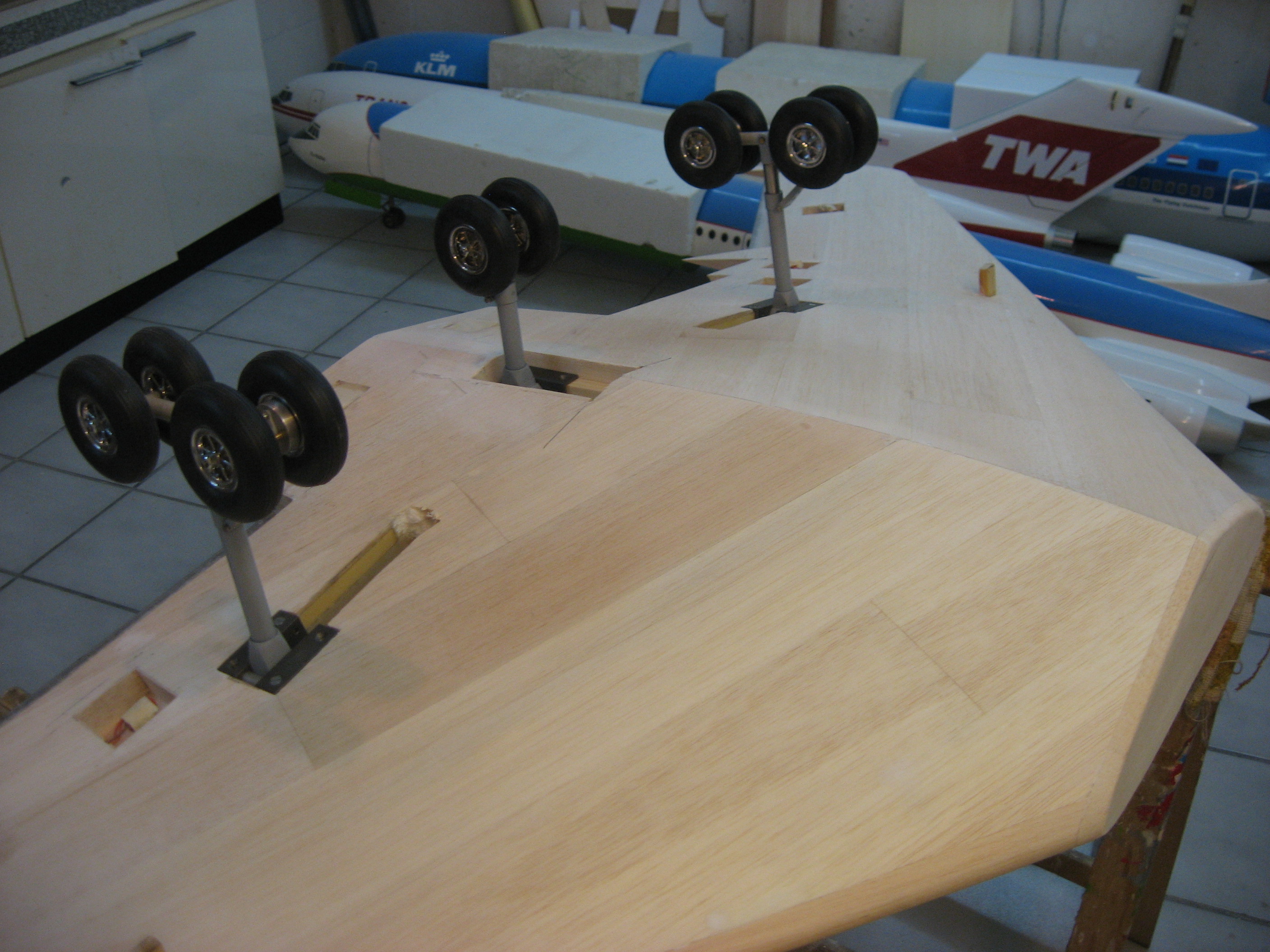

Center main gear installed

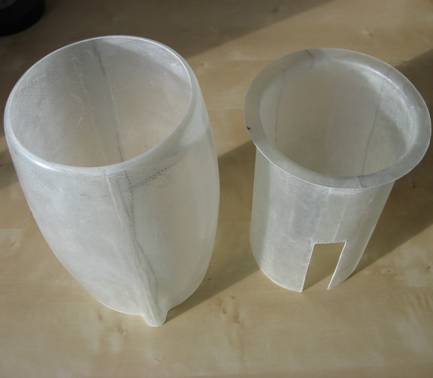

Innenverkleidungen in die Triebwerksgondeln des Flügels eingesetzt

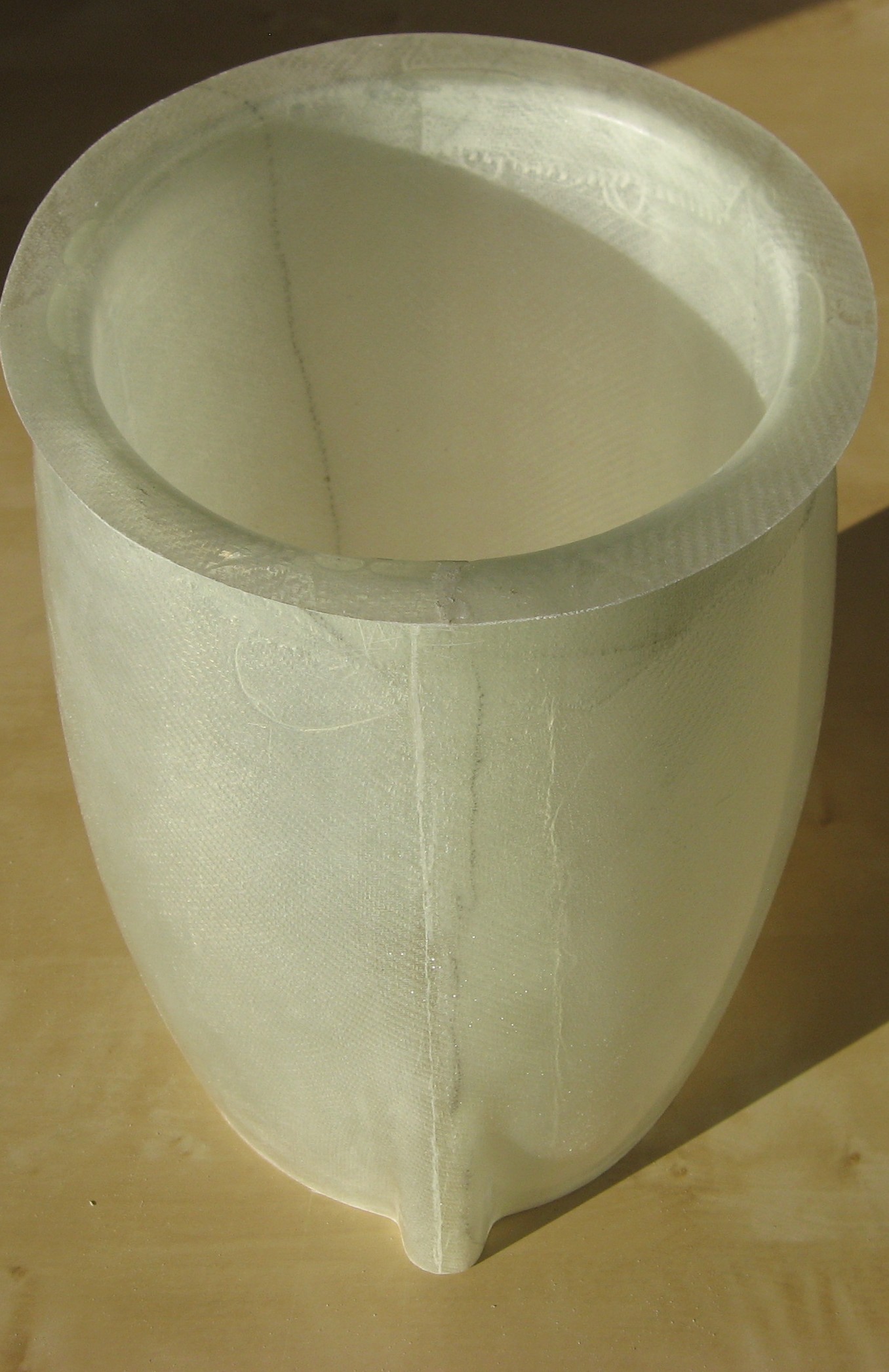

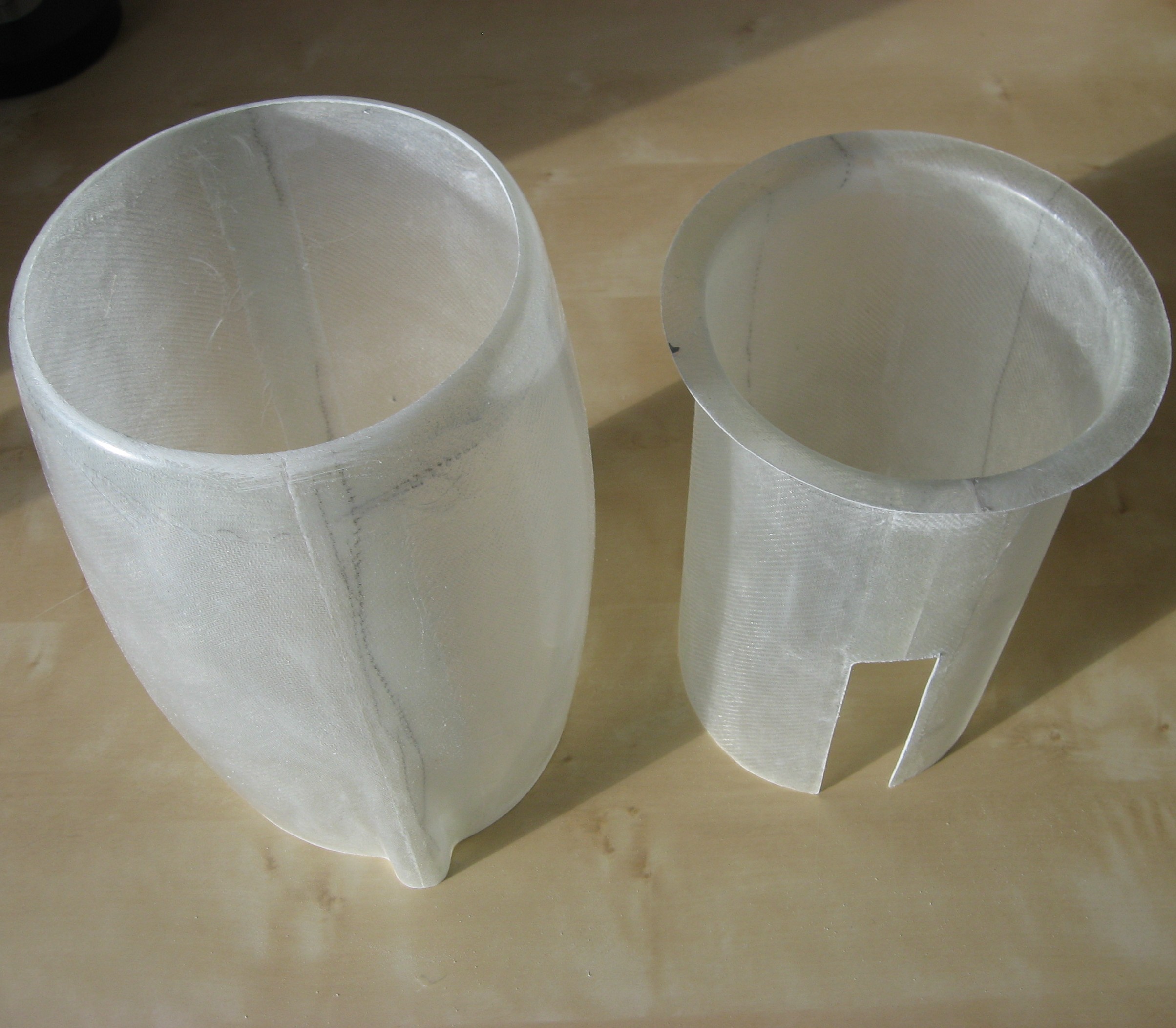

Airducts glued into the wing nacelles

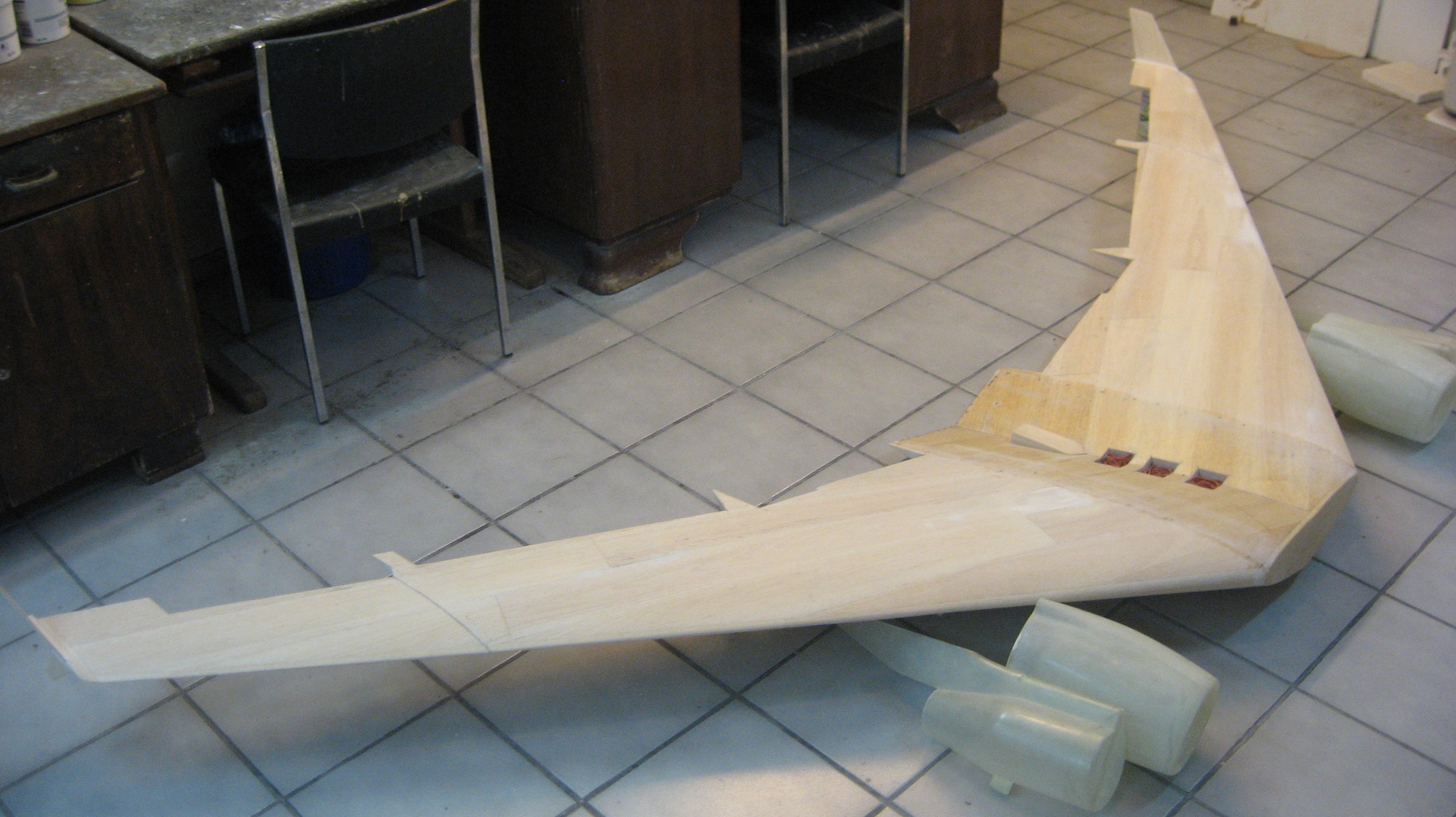

Flügel fertig zur Endmontage

Wing ready for final assembly
