Boeing 727



Many airlines had 727s in their fleets for a long period using these popular planes on short and medium range segments. When production was terminated in 1984 a total of 1832 aircraft had been built.

The modelplane has good flying characteristics. Looking elegant on ground as in flight this three-engine plane can easily be powered by a single turbine. The all-moving tailplane gives good pitch control .







Powerplant:     Glow:               two  10 cc  (.60 cu.in.)  engines

                            Turbine:          once  70 N  (16 lbs.)  thrust

                                                      twice  35 N  (8 lbs.)  thrust

                                                      three times  25 N  (5.5 lbs.)  thrust

                            Ducted Fan:   - - -

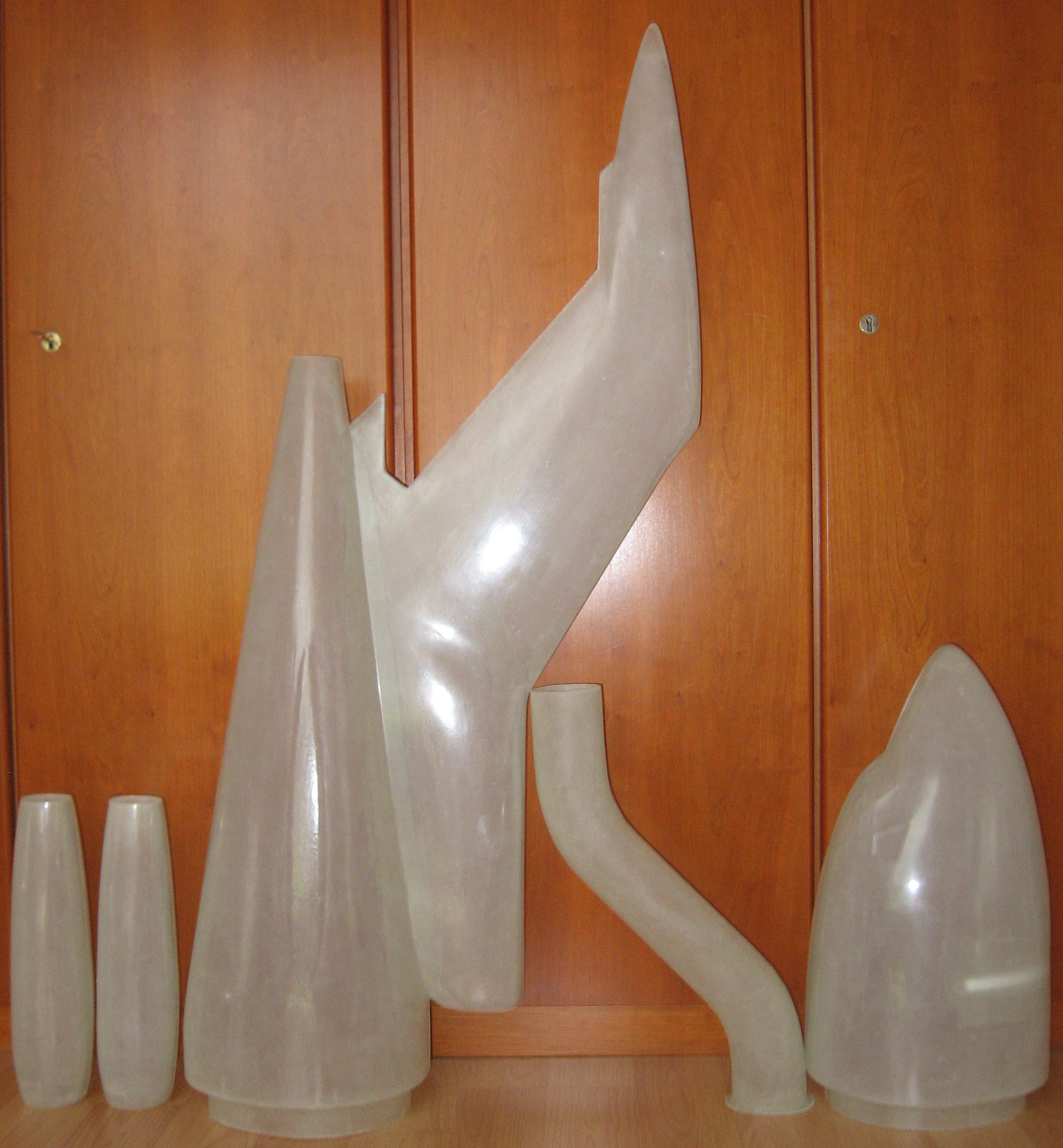

Specifications:                                                                                                                                                Fiberglass parts: Norbert Rauch

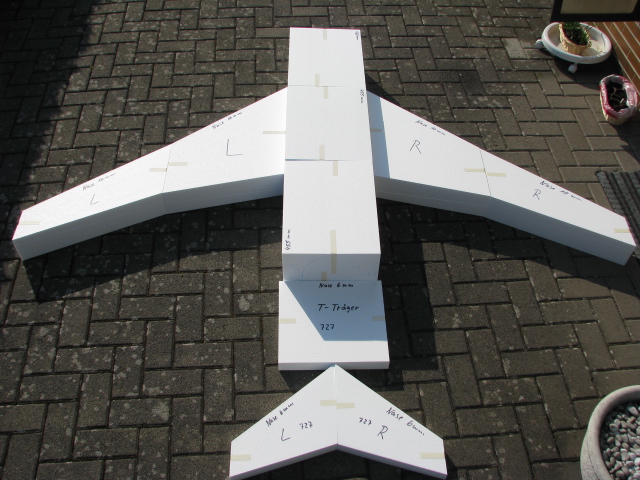

                            Span               Length                Wing Area                Weight                                          Foam cores : Manfred Köster



 B727-100      2.06 m  (81’’)      2.54 m  (100’’)      61.7 dm²  (956 sq.in.)       9  kg  (20 lbs.)                                         Retracts: Hawe Modellbau

 B727-200      2.06 m  (81’’)      2.92 m  (115’’)      61.7 dm²  (956 sq.in.)      9.5 kg  (21 lbs.)

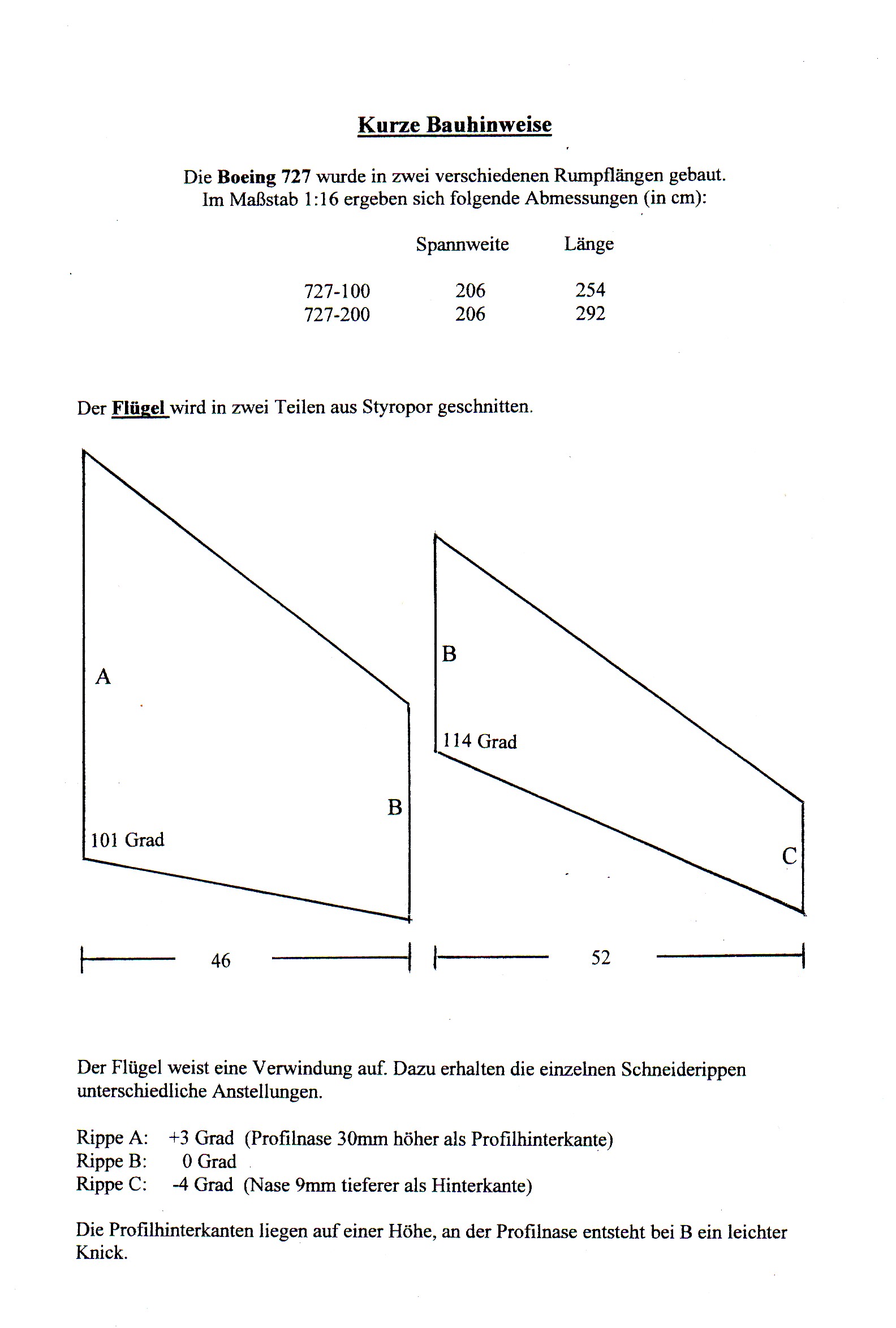

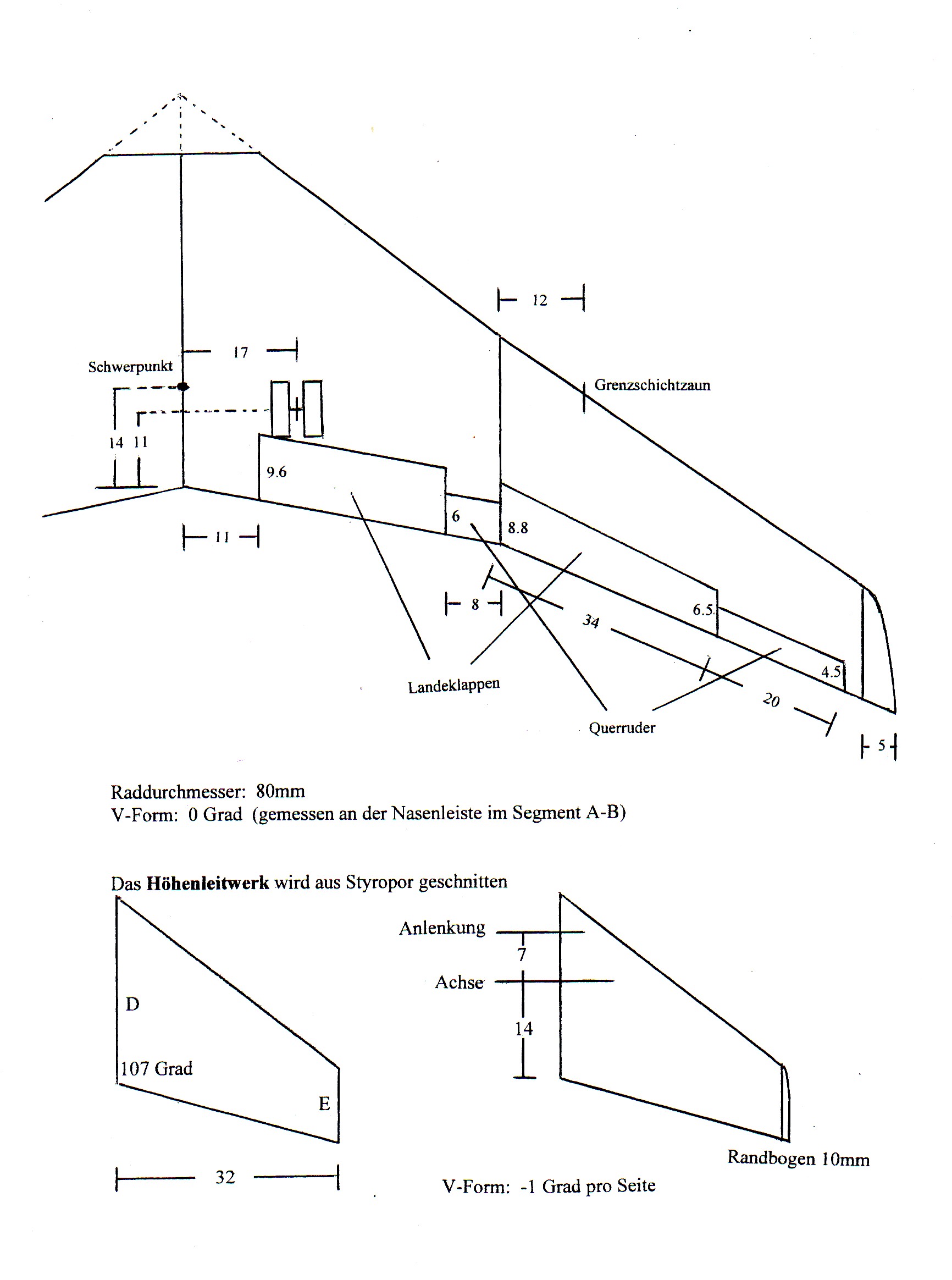

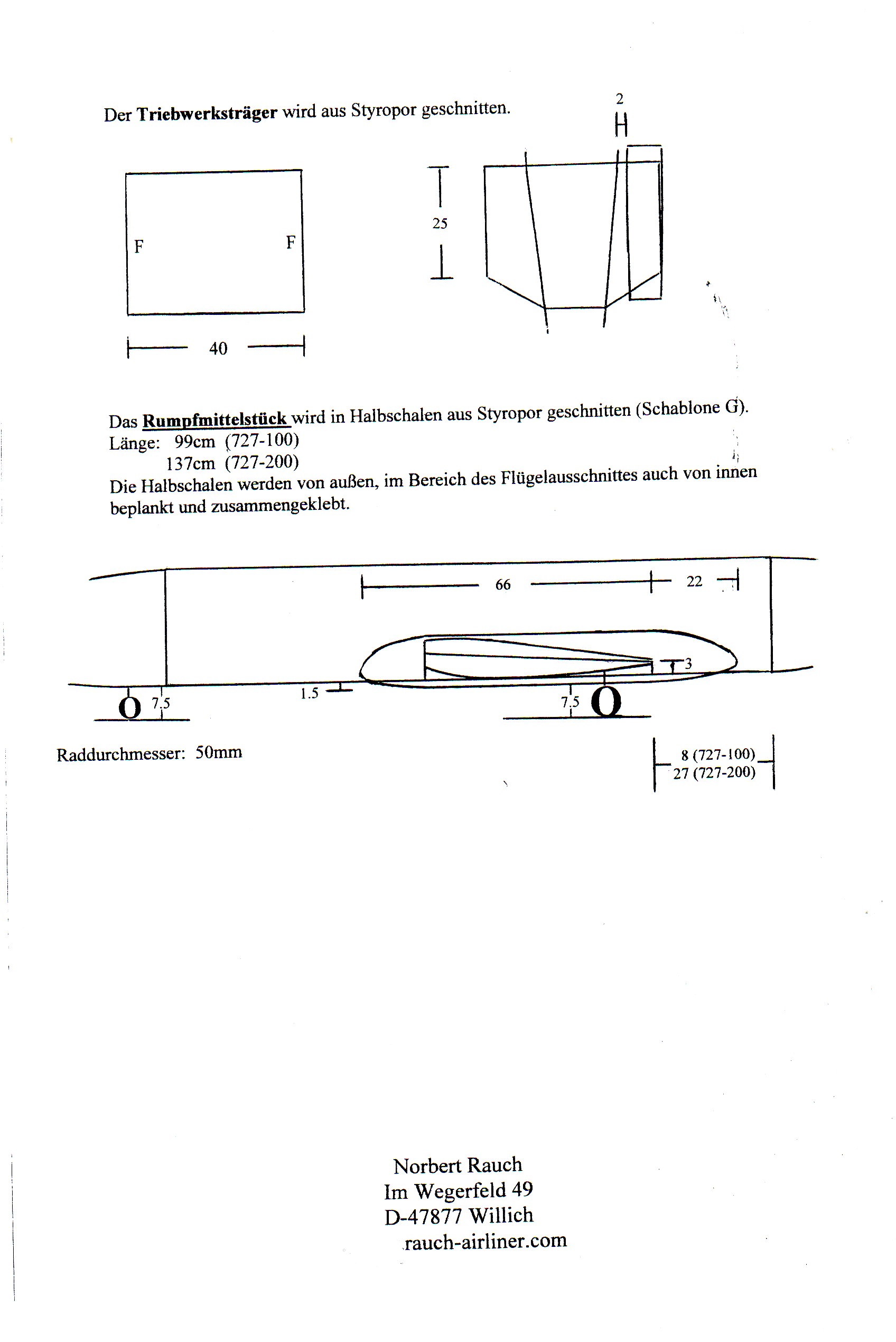

                                                                                                                                                                    Basic Instructions:



 Videos:  (1) (2) (3)



 Build Log:  (1) (2) (3) (4) (5)



   Jetpower-Magazin 4/2012 – 5/2012

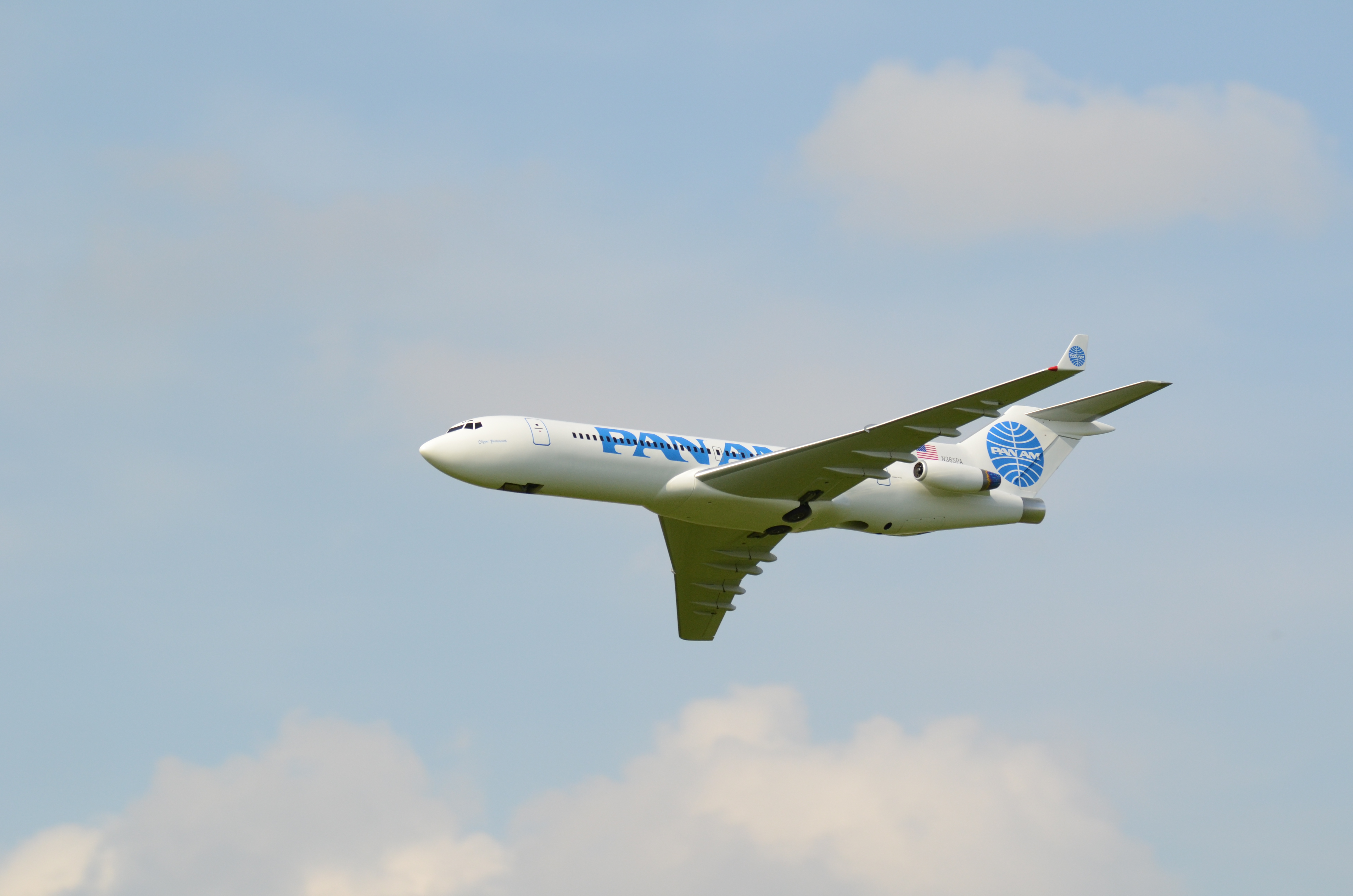

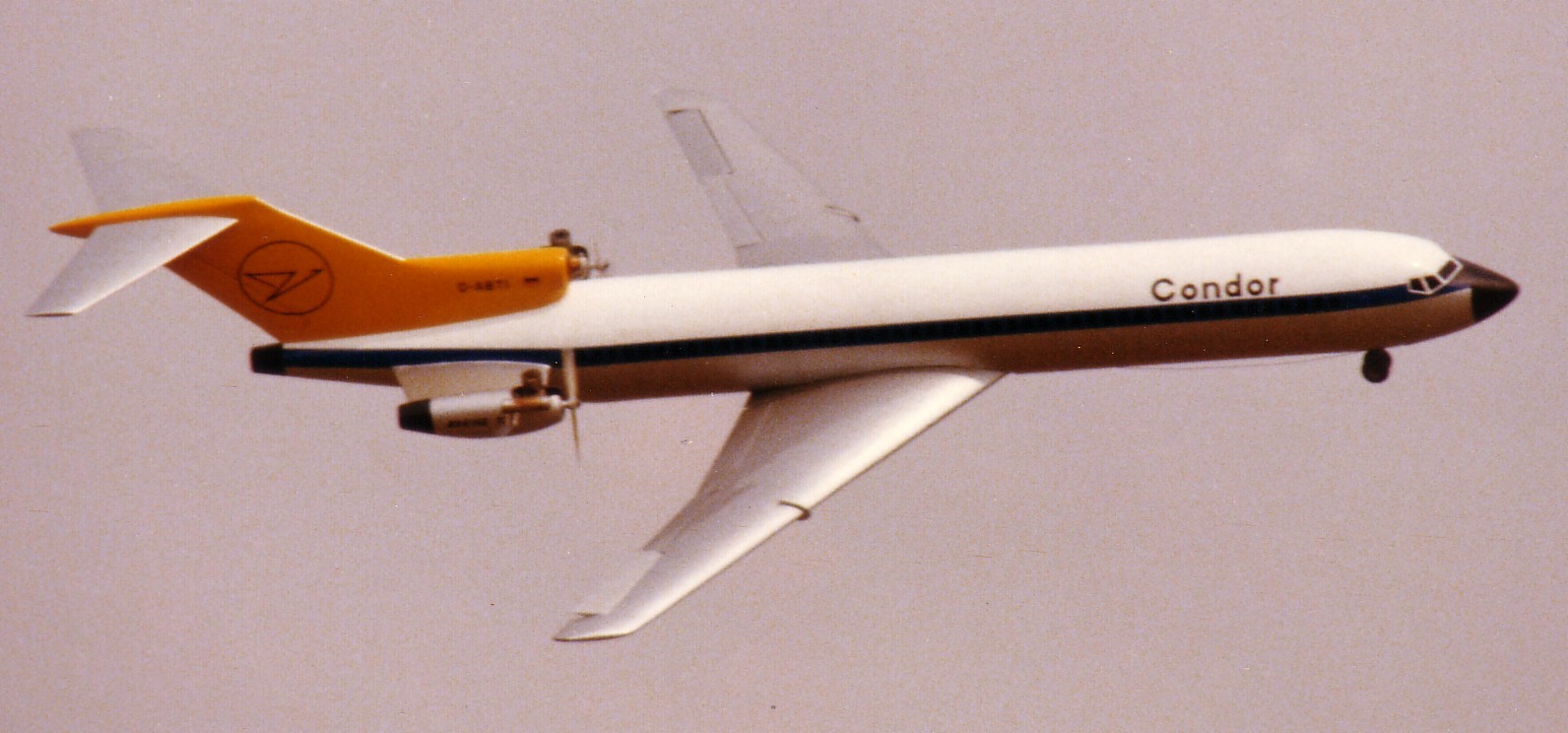

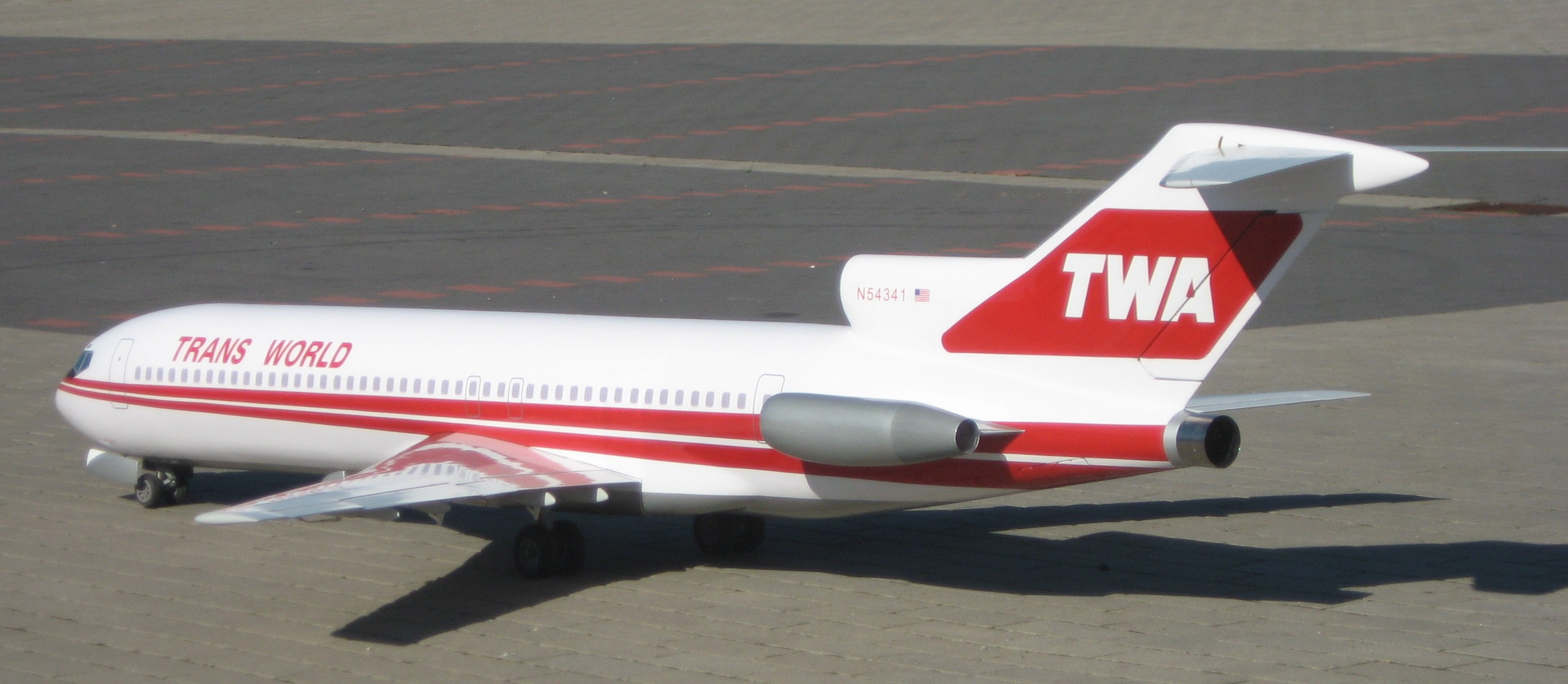

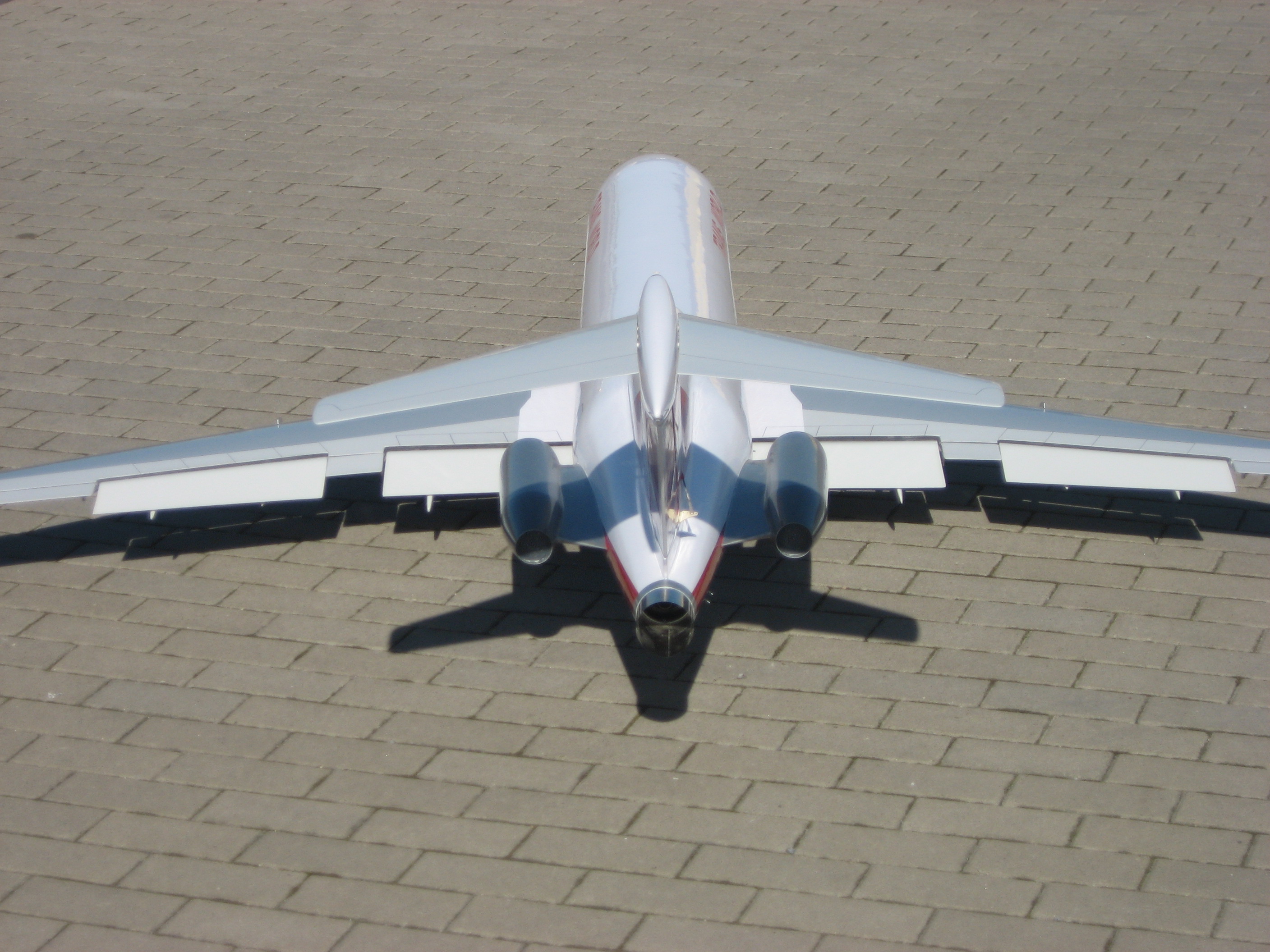

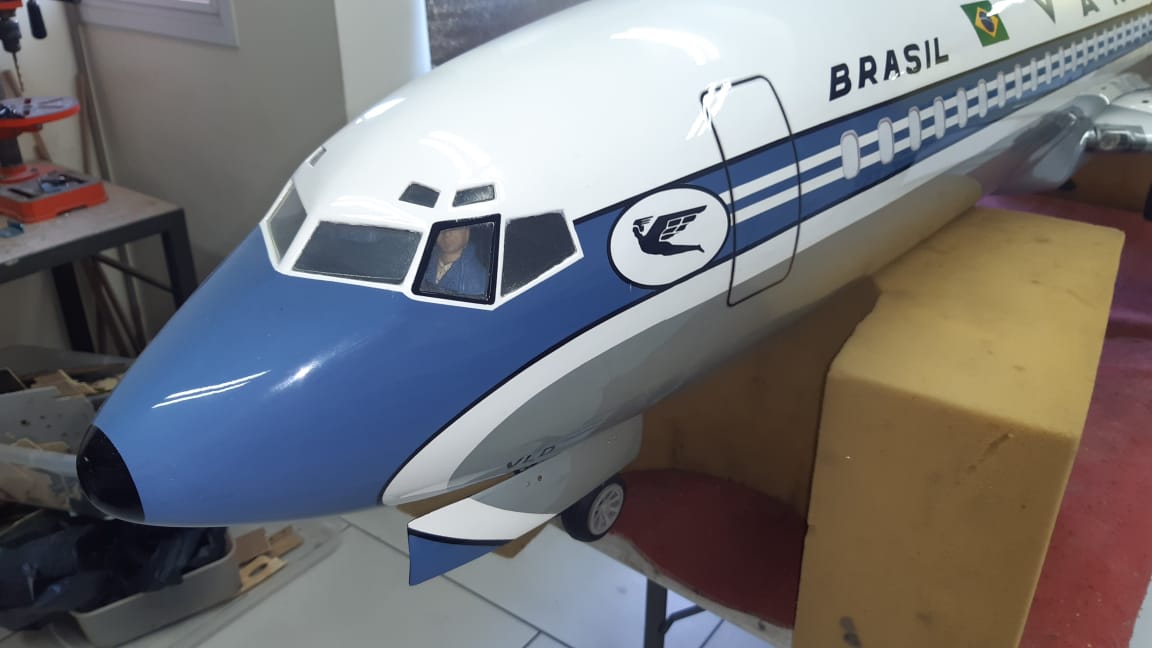

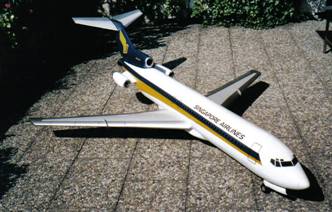

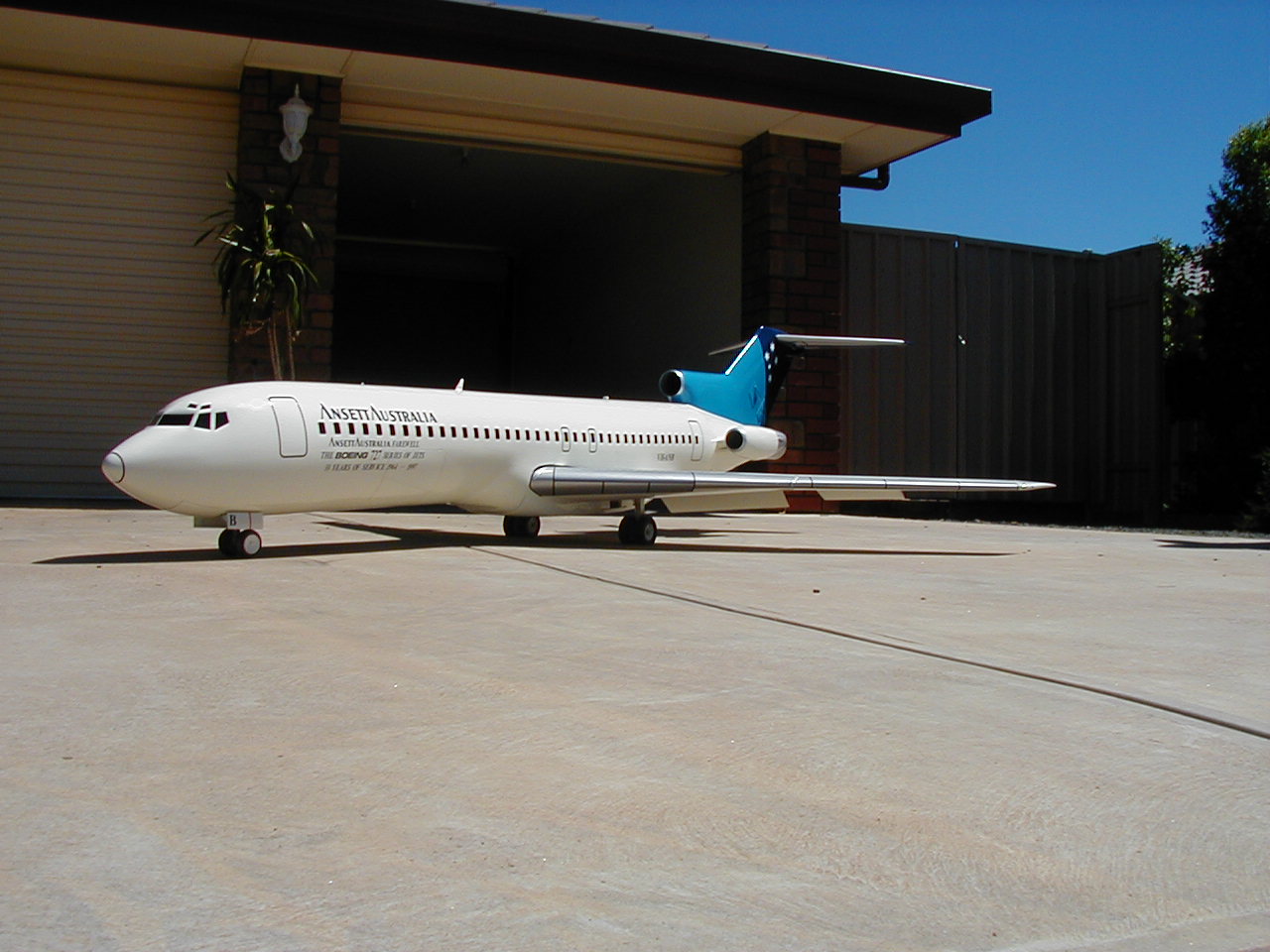

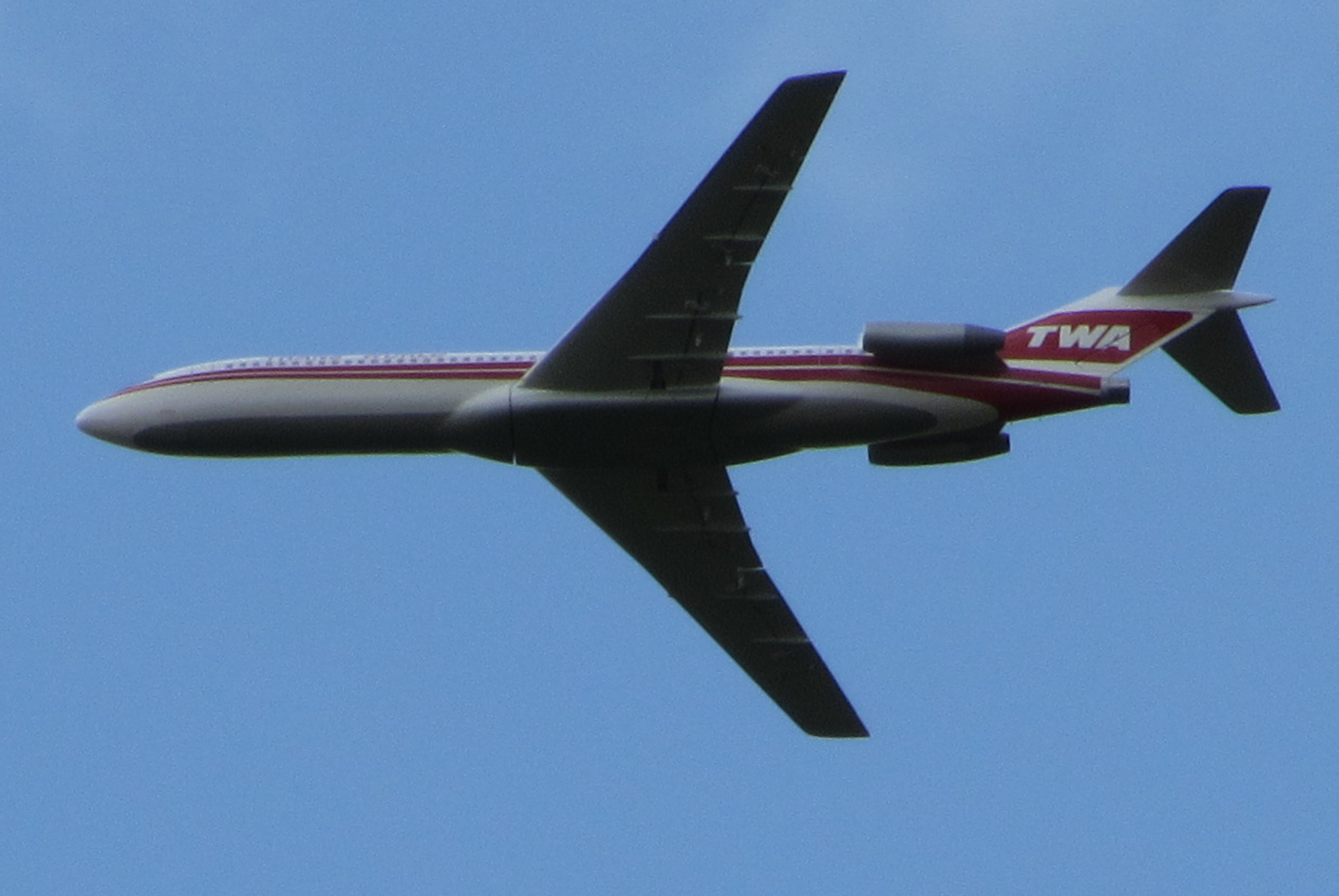

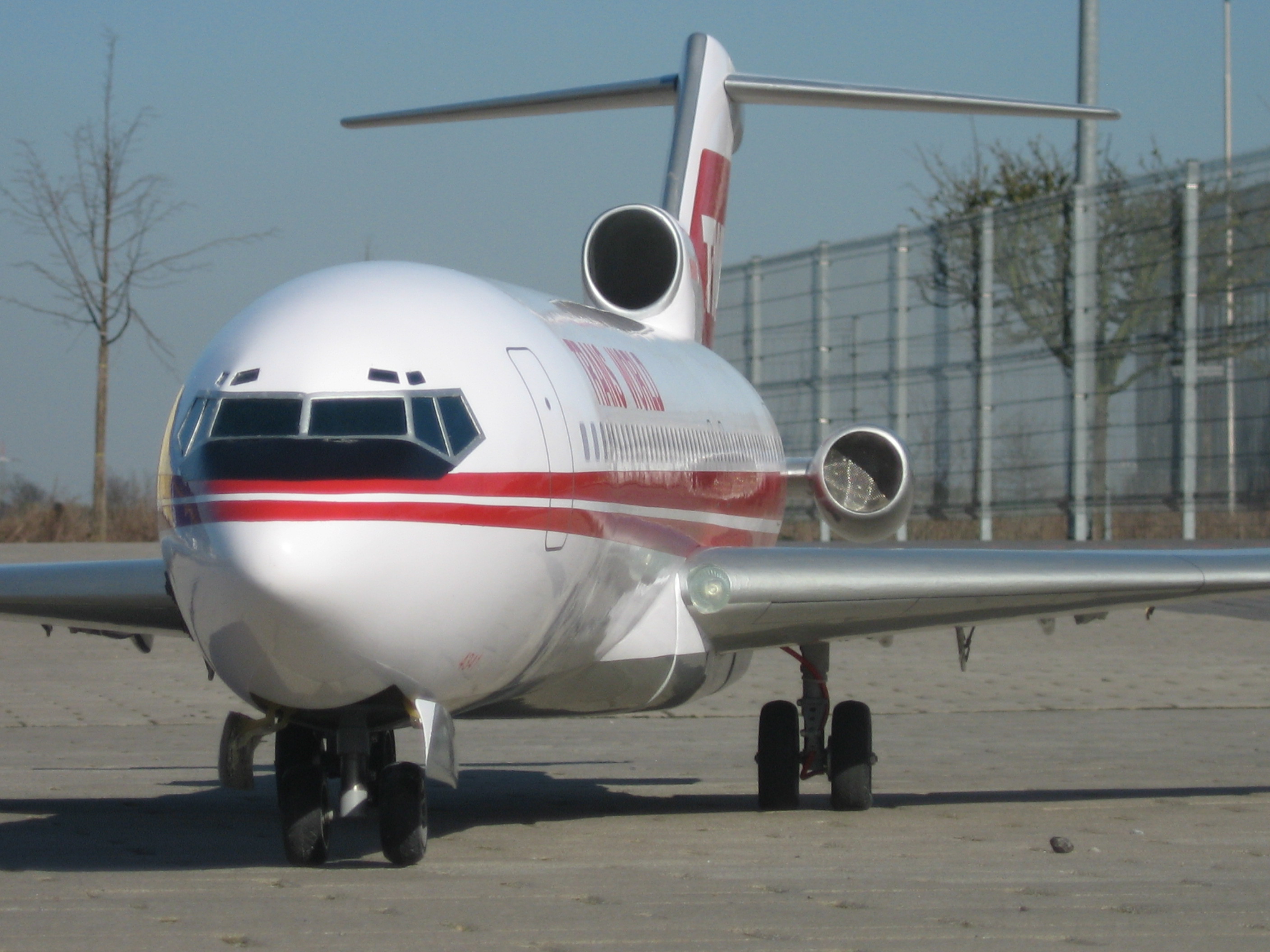

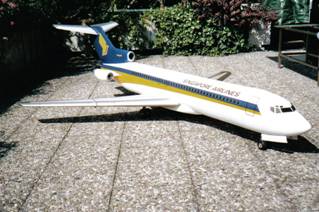

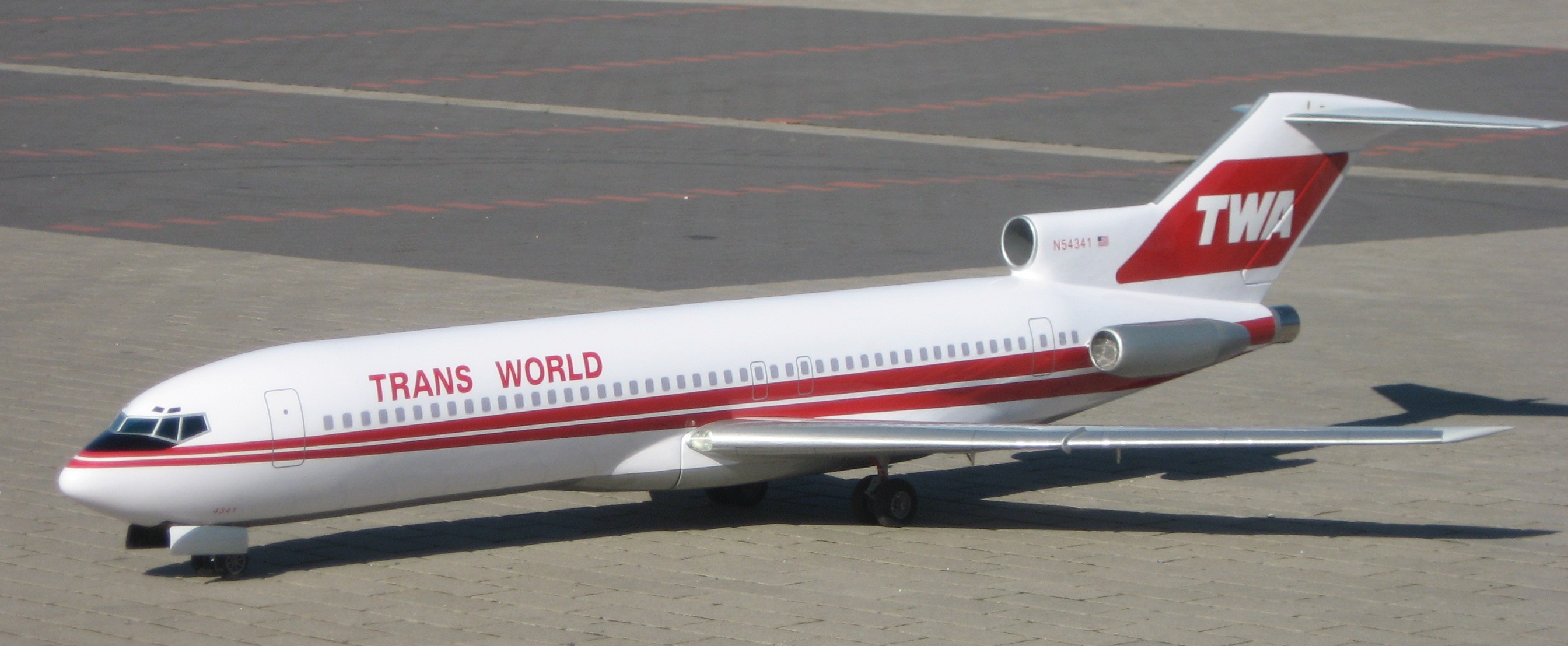

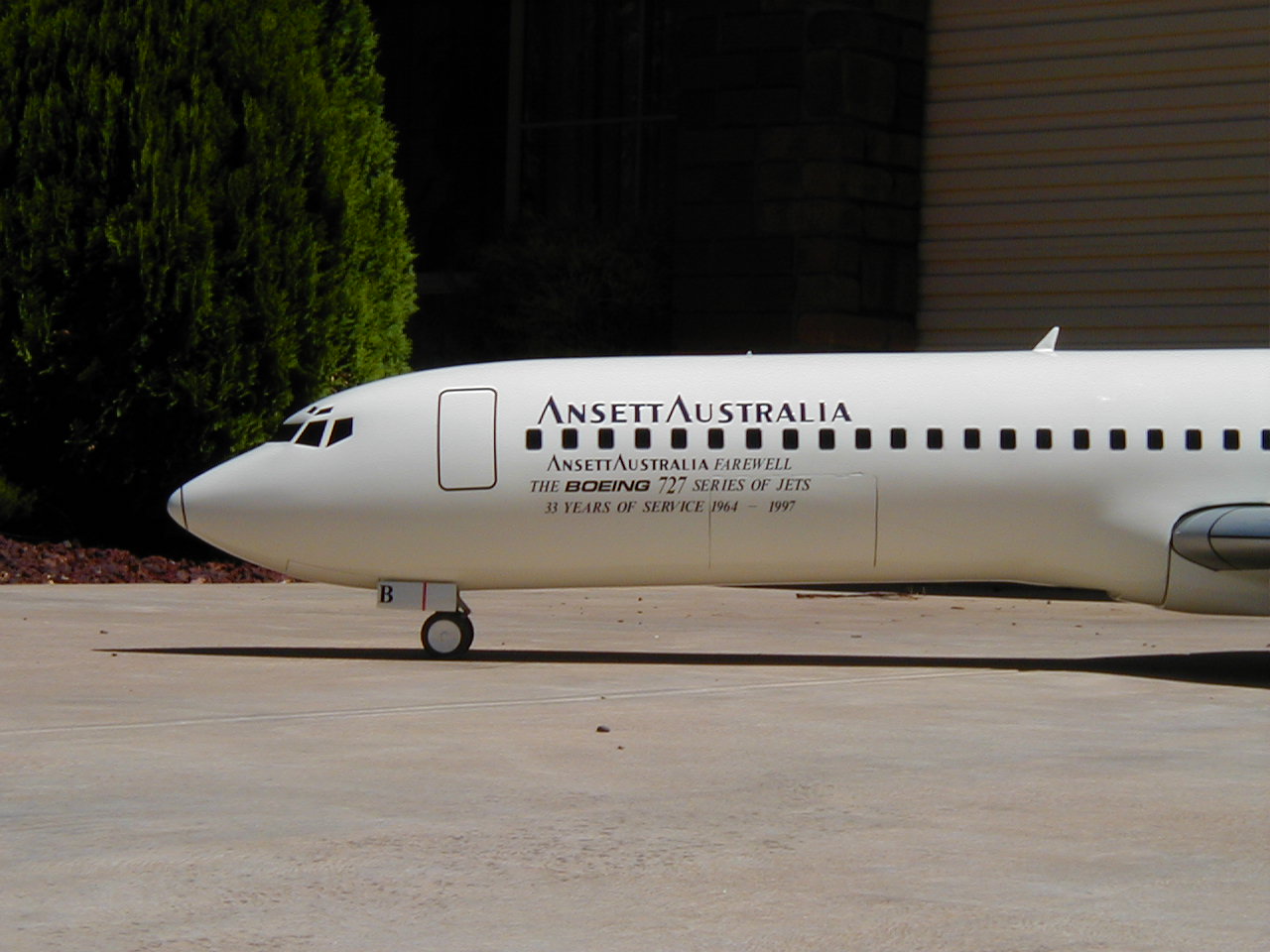

 Pics:





  (Norbert Rauch)





  (Norbert Rauch)





  (Reinhard Czygan, Norbert Rauch)





  (Reinhard Oetken)





  (Dieter Oberin)





  (Mike Haeusler)





  (Peter Michel)





  (Adi Pitz)





  (Vicente de Toribio)





  (Manfred Köster)





  (Norbert Hesse)





  (Alois Blättler)





  (Vicente de Toribio)





  (Peter Michel)







   (Norbert Rauch)





   (Andreas Bodem)
